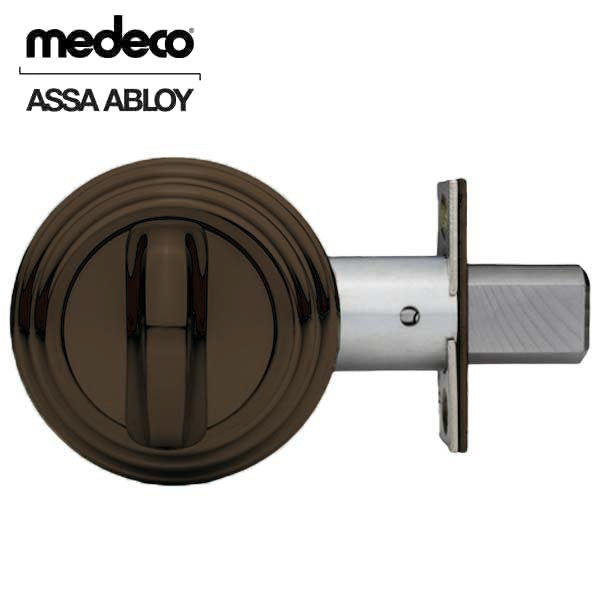

Medeco - 11TC604 - Maxum Commercial - M3 - Single Deadbolt - Pinned 6-Pin - 2-3/4" Backset - 24 - Dark Bronze - DL Keyway - Grade 1
Medeco - 11TC604 - Maxum Commercial - M3 - Single Deadbolt - Pinned 6-Pin - 2-3/4" Backset - 24 - Dark Bronze - DL Keyway - Grade 1
Medeco
Regular price
$236.17 USD
Regular price
$259.99 USD
Sale price
$236.17 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Medeco Maxum deadbolt exceeds Grade 1 ANSI/BHMA A156.36 standard for auxiliary locks. Solid brass, free turning collar and 1/4 inch diameter mounting bolts resist wrenching, prying, and hammering attacks. One-inch throw hardened steel bolt resists sawing and crowbar attacks.
Hardened steel inserts and rotating pins provide drill and pick resistance in accordance with the UL437 standard for safety for key locks. The Medeco m3 design offers a utility patent that provides protection against unauthorized key duplication.
Features
- Grade 1
- DL Keyway
- Dark Bronze Finish
| Specifications | |
|---|---|
| Cylinder Type | Conventional Cylinder |
| Number of Pins | 6 |
| Keyway | DL |
| Keying | Keyed Different |
| Number of Keys | 2 |
| Backset | 2-3/4" |
| Faceplate | 2-1/4" x 1" |
| Finish | 624/US20A/US20D - Dark Oxidized Statuary Bronze Clear Coated |
