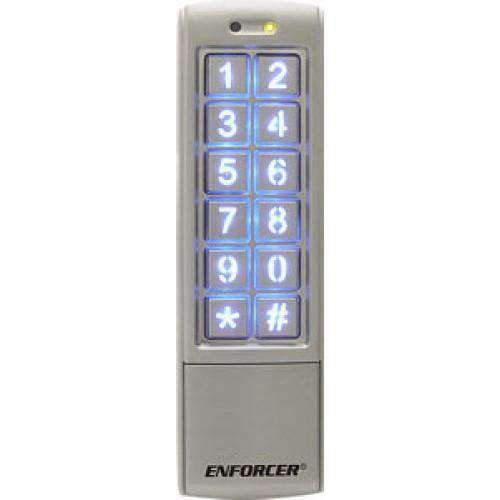

Seco-Larm - Access Control Digital Keypad - 1010 Users - Mullion Style - Weatherproof - Built-In PROX Card Reader - Outdoor
Seco-Larm - Access Control Digital Keypad - 1010 Users - Mullion Style - Weatherproof - Built-In PROX Card Reader - Outdoor
Seco-Larm
Regular price
$133.05 USD
Regular price
$169.39 USD
Sale price
$133.05 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-SLM-SK-2323-SPQ
Item number: 6310
- 12~24 VAC/VDC operation
-
1,010 Users (Output #1: 1,000 users, Output #2:
10 users) -
2 Form C relays, each rated
1 Amp @ 30VDC -
Each relay has programmable output time from 1~99 seconds
or toggle -
Output #2 can be programmed for use with
a doorbell - 2 Egress inputs and 1 door sensor input
- Backlit keys for easy nighttime use
- 2 Multi-colored status LEDs
-
All features are programmed directly from the keypad - no need for an
external programmer -
EEPROM memory protects programmed information in case of
power loss - Optical tamper sensor for added security
-
Circuitry is potted with epoxy for
outdoor use -
IP65 Weatherproof rating, rugged
aluminum construction - Built-in proximity card reader
-
3 Programmable access modes for Output #1: Card Only, Card or Code, and
Card with Code -
Output #2 may have either a card or a code programmed for
each user
Downloads:
| Type | Mullion-Style Weatherproof Digital Access Keypads |
| Number of User Codes | Up to 1,010 |
| Operating Voltage | 12~24 VAC/VDC |
| Current Draw - Standby | 64mA@12VDC |
| Current Draw- Active | 1 Relay active 92mA@12VDC 2 Relays active 120mA@12VDC |
| Relay Outputs (2) | 1A@30VDC, Form C, NO/COM/NC |
| Egress Inputs | 2, N.O. Ground |
| Door Sensor Input | N.C. Ground |
| Tamper Sensor | Optical |
| Proximity Reader Frequency | 125kHz |
| Keypad LED Life | 60,000 hours (over 6.8 years) |
| Proximity Reader Sensing Distance | 1-15/16" (50 mm) |
| Operating Temperature | -4°~122° F (-20°~50° C) |
| Dimensions | 6" x 1-3/4" x 15/16" (152x44x24 mm) |
| Weight | 11-oz (312g) |
