LCN
LCN-4040XP-XXX-XXX
The LCN® 4040XP is our most durable and flexible heavy duty surface mounted closer, designed for institutional and other demanding high traffic applications. The 4040XP sets the standard for reliability, longevity and value with a robust design and extraordinary performance testing. LCN goes beyond ANSI and BHMA industry standards with abuse-cycle and temperature testing to mimic what door closers encounter in high-abuse environments. We built the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger and delivers remarkable value in a variety of applications.
Features
- Closer available with less than 5.0 lbs. opening force on 36" door.
- Maximum opening/hold open point with standard template.
- Advanced Variable Back Check.
- Delay feature incorporates standard 4040 cylinder (not XP)

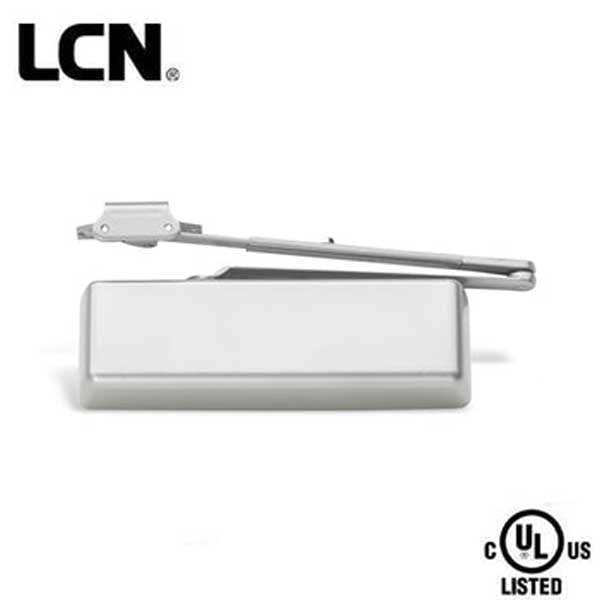

- Regular arm, Includes PA shoe
- Comes with optional finishes
- Regular arm ONLY in Dark Bronze and Aluminum

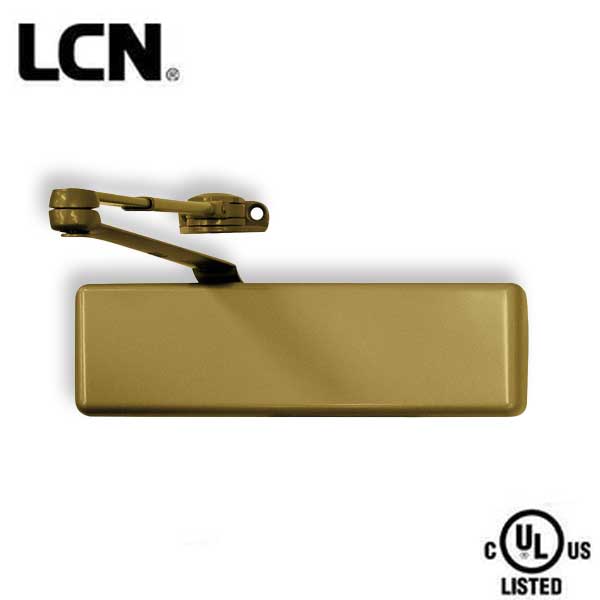

- Hold Open Cush-n-Stop arm ONLY in Satin Brass
- Delayed Action ONLY in Aluminum
- Cush-n-Stop ONLY in Aluminum
- Extra Duty ONLY in Aluminum
- Hold Open ONLY in Aluminum
Specifications
Cover | Clip-on plastic, standard |
Finish | Comes with optional |
Arms | Regular arm |
Templating | Peel-n-Stick templates -2 1⁄4" x 5" mounting hole pattern |
Handing | Non-handed |
Fasteners | Self reaming and tapping screws (SRT) |
Size | Adjustable Spring Size, sizes 1-6 (Includes patented Green Dial) |
Mounting | Hinge (Pull Side), Top jamb (Push Side), Parallel arm (push side) |
Butt hinges | Should not exceed 5" (127 mm) in width |
Auxiliary stop | Recommended at hold open point or where a door cannot swing 120° |
Head Frame |
Requires 1 1 ⁄4" (32 mm) minimum |
Flush Ceiling | 2" (51 mm) head frame does not require special templating |
Door Width | 2'4" (711 mm) minimum for single door with SE 4" (1219 mm) minimum for paired doors with SE |
Clearance | 2-3/8" (60 mm) behind door required for 90° installation |
Accessibility |
Available with less than 5.0 lbs. opening force on 36" door |
Fluid | All weather liquid X fluid |
Body construction | Cast iron body Full complement bearing 1 1⁄2" diameter piston Double heat treated pinion journal |
Fire Rated | UL 10C 3 Hour Positive pressure |
Certifications | Grade 1, ANSI, UL 10C, BAA |
Manufacturer's Warranty | 30 Years |
Downloads
- Specifications
- Pull/Parallel arm Installation Instructions
- Push/Top Jam arm Installation Instructions
- CUSH arm Installation Instructions
