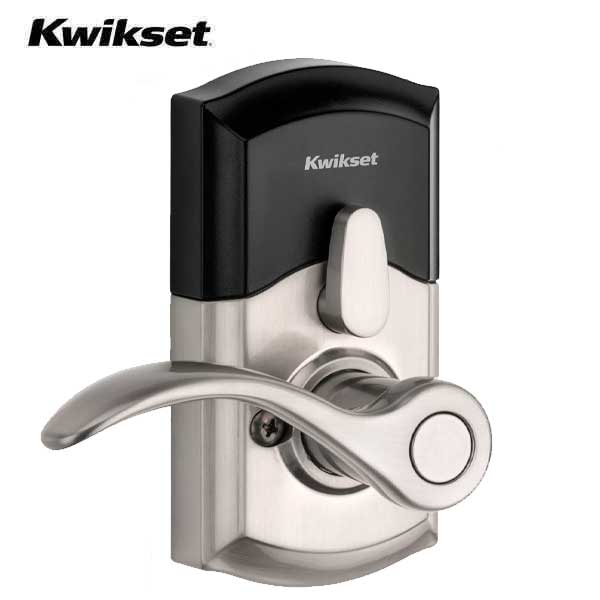

Kwikset - 955PML - SmartCode Keypad - Pembroke Commercial Electronic Lever Set - US15 - Satin Nickel - SmartKey Technology - Grade 2
Kwikset - 955PML - SmartCode Keypad - Pembroke Commercial Electronic Lever Set - US15 - Satin Nickel - SmartKey Technology - Grade 2
Kwikset
Couldn't load pickup availability
SLK-KWS-955PML-15-SMT-CP
Item number: 10297
The SmartCode 955 Commercial Grade touchpad electronic deadbolt lever is a 1-touch locking motorized deadbolt. With your personalized code, you can enter your home with the convenience of keyless entry and the back-lit keypad provides increased visibility. SmartCode 955 is easy to install, program and use, and operates on one 9 Volt battery. It also features SmartKey Security as the back-up keyway. This entry lever can be locked or unlocked by using the keypad or key from the outside as well as the turn button from the inside. The Venetian Bronze finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product's style
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- Robust metallic design for enhanced durability
- BHMA commercial grade 2 certified
- Highest residential security rating
- 3-year battery life
- Reversible lever to for left-hand or right-hand doors
- Property managers can disable the passage mode so that it auto-locks every time and a key or code is required for entry
- For use on exterior doors where keyed entry and security is needed
- SmartKey Security Re-key technology is compatible with Kwikset (KW1) keyway
- Keyed lever operated by key outside or electronic keypad and thumb turn inside
- Comes with 2 keys
- Latch has round corner faceplate
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
- Locking mechanism functions with turn piece on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Keypad stays lit for 5-seconds after inactivity
Specifications
| Function | Keyed entry electronic lever |
| Door Prep | 2 1�8" diameter face hole & 1" diameter latch hole |
| Backset | Adjustable 2 3�8" or 2 3�4" |
| Door Thickness | 1 3�8" - 1 3�4" |
| Faceplates | 1" x 2 1�4" round corner standard |
| Strikes | Round corner, 4 hole strike, 2 3�4" x 1 1�8" |
| Latch | Round corner adjustable 2 3�8" x 2 3�4" |
| Bolt | 1�2" throw, dead latch |
| Door Handing | Reversible |
| Cylinder | SmartKey Security |
| ADA Certified | UL Rating 20 min |
