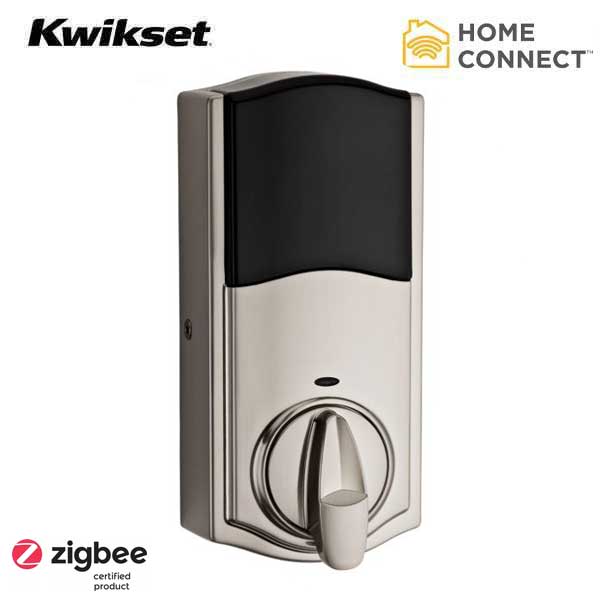

Kwikset - SmartCode 914TRL - Electronic Traditional Deadbolt - 15 - Satin Nickel - Home Connect - Zigbee - SmartKey Technology
Kwikset - SmartCode 914TRL - Electronic Traditional Deadbolt - 15 - Satin Nickel - Home Connect - Zigbee - SmartKey Technology
Kwikset
SLK-KWS-914TRL-ZB-15
Item: 9631
The SmartCode 914 touchpad smart lock with Home Connect technology enables the lock to wirelessly communicate with other devices in home. The lock allows the user (through a web enabled device) to remotely check the door lock status, lock or unlock the door and receive notifications. SmartCode is a one-touch locking motorized deadbolt. With your personalized code, you can enter your home with the convenience of keyless entry and the back-lit keypad provides increased visibility. SmartCode is easy to install, program and use, and operates on 4 AA batteries. It also features SmartKey Security as the back-up keyway. This single cylinder deadbolt can be locked or unlocked by using the keypad or key from the outside as well as the turn button from the inside. The Satin Nickel finish is hand-rubbed to reveal unique bronze highlights and provides a rich and warm complement to the product's style.
Home Connect devices work with your smart phone iPhone or Android , Alexa and Samsung smart products.
Features
- Keyless entry convenience
- One touch locking
- Dramatically reduced interior size and sleek metal design
- 30 user codes plus master code feature for added security
- 20 minute fire rating - UL certified
- Full 128-bit encryption security
- SmartKey Security technology - the lock you can re-key yourself in seconds in three easy steps
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
- Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin and tumbler locks
Specifications
Function | Single cylinder deadbolt |
Door Prep | 2 1 �8" diameter face hole & 1" diameter latch hole |
Backset | Adjustable 2 3�8" or 2 3�4" |
Door Thickness | 1 3�8" “ 2" automatic adjustment |
Faceplates |
1" x 2 1�4" round corner standard |
Strikes | Round corner strike 2 3�4" x 2 1�8" |
Latch | Round corner adjustable 2 3�8" x 2 3�4" |
Bolt | 1" throw, steel deadbolt |
Door Handing | Reversible |
Cylinder | SmartKey Security Re-key Technology |
Downloads
- Dimensions
- Drilling Template
- Installation Guide
- Smart Key Instructions
- Troubleshooting Guide
- Sell Sheet
