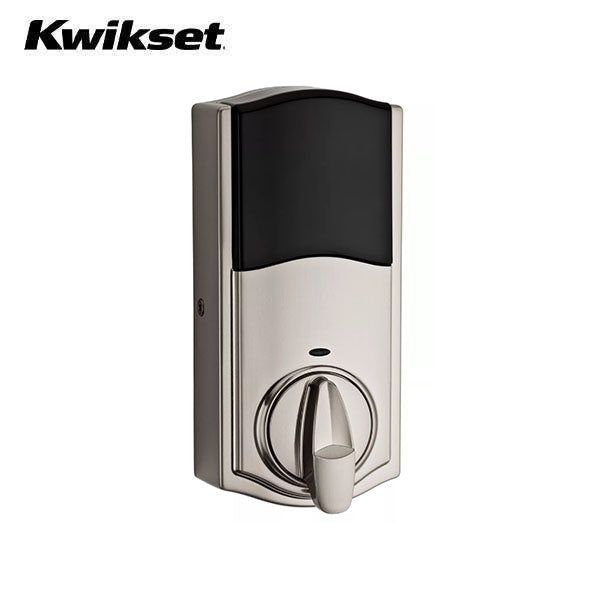

Kwikset - SmartCode 916TRL - Traditional Electronic Deadbolt - Zigbee Technology - US15 - Satin Nickel - Grade 2
Kwikset - SmartCode 916TRL - Traditional Electronic Deadbolt - Zigbee Technology - US15 - Satin Nickel - Grade 2
Kwikset
Couldn't load pickup availability
SLK-KWS-916TRL-US15
Item Number: 8218
The SmartCode touchscreen smart lock with Home Connect technology enables the lock to wirelessly communicate with other devices in home. The lock allows the user (through a web enabled device) to remotely check the door lock status, lock or unlock the door and receive notifications. SmartCode is a one-touch locking motorized deadbolt. With your personalized code, you can enter your home with the convenience of keyless entry and the back-lit keypad provides increased visibility. It features patented SecureScreen technology to prevent code detection from fingerprints on the touchscreen. SmartCode is easy to install, program and use, and operates on 4 AA batteries. It also features SmartKey Security as the back-up keyway. This single cylinder deadbolt can be locked or unlocked by using the keypad or key from the outside as well as the turn button from the inside. The crisp, clean appearance of the Satin Nickel finish adds to the overall look of the product and brings a modern feel.
- The advanced capacitive touchscreen is ultra responsive to touch for instant screen display and features cool white LEDs for defined illumination
- Bright white LED’s for clear visibility in the brightest sunlight
- Secured keyless entry convenience
- One touch locking
- Dramatically reduced interior size and sleek metal design
- 30 user codes plus master code feature for added security
- BHMA grade 2 certified
- 20 minute fire rating - UL certified
- Full 128-bit encryption security
- SmartKey® technology - the lock you can re-key yourself in seconds in three easy steps
- SmartKey® re-key technology is compatible with Kwikset (KW1) keyway
- Patented Bump proof and Pick resistant side locking bar technology
- Installs in minutes with just a screw driver no hard wiring needed
- Fits standard doors (1-3/8in. – 2in.) no new screw holes required
- Tamper resistant interior
Specifications
| Function | Single Cylinder Deadbolt |
| Door Prep | 2 1 ⁄8 " diameter face hole & 1” diameter latch hole |
| Backset |
Adjustable 2 3⁄8 " or 2 3⁄4 " |
| Door Thickness | 1 3⁄8 " - 2 1 ⁄8” automatic adjustment |
| Cylinder | SmartKey® Re-key Technology |
| Faceplates | 1 " x 2 1 ⁄4 " round corner standard |
| Strikes | Round corner strike 2 3⁄4 " x 2 1 ⁄8 " |
| Latch | Round corner adjustable 2 3⁄8 " x 2 3⁄4 " |
| Bolt | 1 " throw, steel deadbolt |
| Door Handing | Reversible |
| Wireless Protocol | Z-Wave 500; lock complies with Z-Wave standard of open air, line of sight transmission of 160 feet or more. Compliant with FCC Part 15. Industry Canada. *Range may vary depending on radio frequency environment. Work with your home control platform to optimize range |
