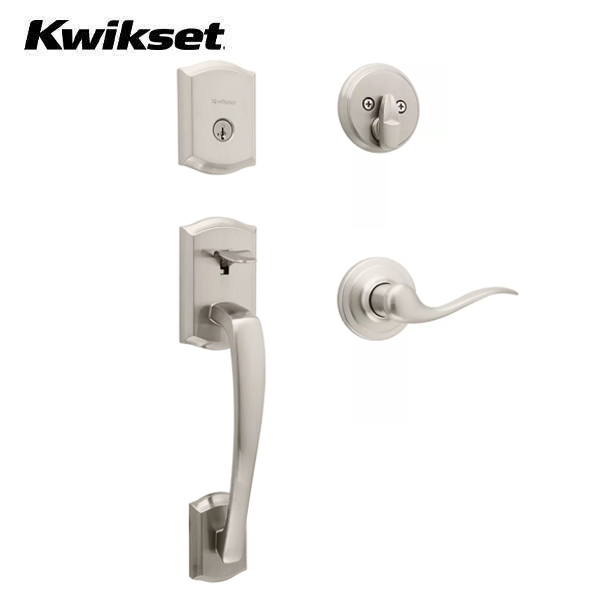

Kwikset - 818PTHXTNL - Prescott Handleset - Tustin Lever - Square Rose - 15 - Satin Nickel - Entrance - SmartKey Technology - Grade 3
Kwikset - 818PTHXTNL - Prescott Handleset - Tustin Lever - Square Rose - 15 - Satin Nickel - Entrance - SmartKey Technology - Grade 3
Kwikset
Regular price
$288.43 USD
Regular price
$377.51 USD
Sale price
$288.43 USD
Unit price
per
SLK-KWS-818PTHXTNL-15-SMT-CP
Item Number: 11658
The Prescott handle set has an elegant but modest appearance that will bring charm to any home. With traditional contours that provide an attractive look and comfortable feel when entering the front door. The latch bolt is operated by the thumb piece on the outside and the grip on the inside. The deadbolt is operated by a key on the outside and a thumb turn on the inside. The crisp, clean appearance of the Satin Nickel finish adds to the overall look of the product and brings a modern feel.
- Certified highest residential security, durability and finish - ANSI/BHMA grade AAA
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- SmartKey Security Re-key technology is compatible with Kwikset (KW1) keyway
- Comes with 2 keys
- Fully reversible interior lever fits both right-handed and left-handed doors
- Latch has a round corner faceplate
- For use on exterior doors where keyed entry and security is needed
- Latch has an adjustable backset 2-3/8 in. to 2-3/4 in. to fit all standard door preparations
- Includes round deadbolt strike
- 1 in. deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
Specifications
Dimensions | |
Door Prep | Cross Bore 2 1 �8". Edge Bore 1" Latch Face 1" x 2 1 �4" |
Door Thickness | 1 3�4" Standard. Thick door service part available for up to 2 1 �4" |
Faceplates | 1" x 2 1 �4". Square, round and drive-in included |
Strikes | Deadbolt: 1 1 �8" x 2 3�4" Handle: 2 1 �4" full lip round |
Bolt | Deadbolt: 1" throw Handle: 1 �2" throw |
Cylinder | SmartKey Security |
Door Handing | Reversible for right or left-hand doors |
ANSI/BHMA | Deadbolt “ A156.39 Grade AAA Certified |
UL | Optional 20 minute UL fire rating available except for 819 function |
ADA | N/A |
Application Type | Entry |
Commercial/Residential | Residential |
Deadbolt Type | Single Cylinder Deadbolt |
Door Lock Style | Classic |
Electronic/Mechanical | Mechanical |
Finish | Satin Nickel |
Hardware Color Family | Nickel |
Hardware Finish Family | Nickel |
Included | Drilling Template, Hardware, Installation Instructions, Mounting Hardware |
Keying Type | Keyed Different |
Knob/lever strike | Round corner |
Lock Type | Keyed |
Material
|
Metal |
Product Weight (lb.) | 6.44 |
Security/ANSI Grade | AAA |
Total Number of Keys Included | 2 |
Backset size (in.) | Adjustable 2 3�8" or 2 3�4" |
Deadbolt strike | Round corner |
Door Handing | Universal |
Door Locks & Knobs Product Type | Keyed Handlesets |
Features | Adjustable Backset, Easy Installation, Kwikset SmartKey |
Handleset Product Type | 2 Piece Front & Back |
Interior/Exterior | Exterior |
Keyway | KW1 |
Lever style | Wave |
Lock Type | Keyed Entry |
Minimum door thickness (in.) | 1.375 |
Single or Double Cylinder Deadbolt | Single |
Certifications and Listings | ANSI Certified |
Manufacturer Warranty | Lifetime mechanical and finish warranty |
