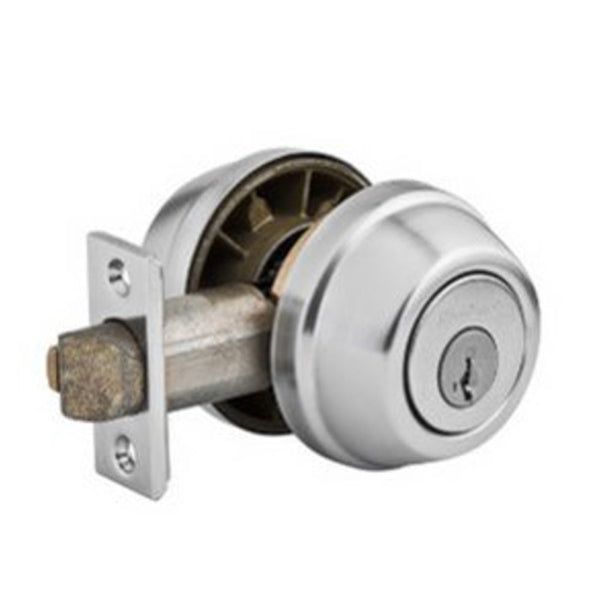

Kwikset - 598 - Gatelatch Deadbolt - Single Cylinder - Round Rose - 26D - Satin Chrome - SmartKey Technology - Grade 2

SLK-KWS-598-SMT-26D
Item Number: 10830

As the industry leader, Kwikset has provided trusted security for over 60 years and has become synonymous with security, peace of mind, style and innovation. This single cylinder gatelatch, equipped with the new SmartKey technology, is the perfect way to protect your home or business. The deadbolt is locked/unlocked by a key outside and a thumbturn inside. The Satin Chrome finish gives the product a modern and minimalist look.

• For use on exterior doors where keyed entry and security is needed
• Featuring SmartKey security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
• SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
• Deadbolt operated by key outside and thumb turn inside
• Comes with 2 keys
• Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
• ANSI/BHMA grade 1 certified
• Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
• Includes full lip round deadbolt strike
• 1 inch deadbolt throw
• Locking mechanism functions with turn piece on the interior of the lock
• Easily installs in minutes with just a screwdriver
• Lifetime mechanical and finish warranty



Specifications

Door Prep	Crossbore 2-1/8" or 1-1/2" Edge Bore 1"
Backset	2-3/8"
Door Thickness	1-1/2", 1-3/4", 1-3/8", 1-5/8"
Cylinder	SmartKey 5 Pin
Faceplates	Square Corner
Strikes	1" x 2 1 �4" Square or round corner
Bolt	1" throw Nickel plated steel.
UL	N/A
Door Handing	Reversible for right or left-handed doors
ANSI/BHMA	Grade 2
ADA	No

Smart Key

This technology allows you to re-key your lock in seconds with 3 simple steps and features stainless steel racks, pins, and side locking bar for increased strength and security.
