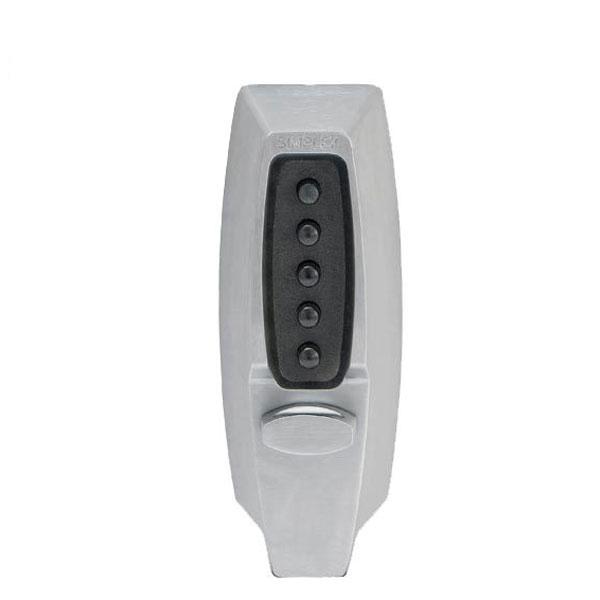

Simplex - 7104 - Mechanical Pushbutton Deadlocking Latch Keyless Lock - 2 3/8" Backset - Satin Chrome

Simplex - 7104 - Mechanical Pushbutton Deadlocking Latch Keyless Lock - 2 3/8" Backset - Satin Chrome

Simplex

$163.63 USD
$181.99 USD $163.63 USD
Sale Sold out
Shipping calculated at checkout.

The Simplex 7104 Mechanical pushbutton Deadlocking Latch eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadlocking latch relocks automatically when door closes

Features:

  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Deadlocking Latch—relocks automatically when door closes
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing lock from the door
  • Field reversible Handing
  • Pushbutton Access
  • Primary / Auxiliary Lock


    Specifications:


    Construction:

    		 All metal cast front housing; force-resistant, clutch-protected exterior thumbturn

    Locking Device:

    		 ½" (13 mm) Deadlocking Latch, flat front face plate Adjustable 2⅜" (60 mm) to 2¾" (70 mm) backset

    Numeric Keypad:

    		 Vandal resistant, solid metal pushbuttons

    Handing:

    		 Field reversible

    Finish:

    		 Satin Chrome 26D (626)

    Backset:

    		 Adjustable 2⅜" (60 mm) to 2¾" (70 mm) backset

    Latch:

    		 ½" (13 mm) deadlocking latch

    Minimum Stile Recommended:

    		 4” (102 mm)

    Strike:

    		 Curved lip strike plate

    Door Preparation:
    • 1⅜" (35 mm) diameter through bore
    • 1" (25 mm) diameter cross bore
    • ¾" (19 mm) through bore
    • 2 x ¼" through bores

    Door Thickness:

    		 1⅜" (35 mm) to 2¼" (57 mm), wood or metal

    Durability:

    Weather resistant

    Certification:

    BAA/NAFTA Certified

    Warranty:

    1 year manufacturer warranty

    Downloads:

    • Installation Guide
    • Spec Sheet
