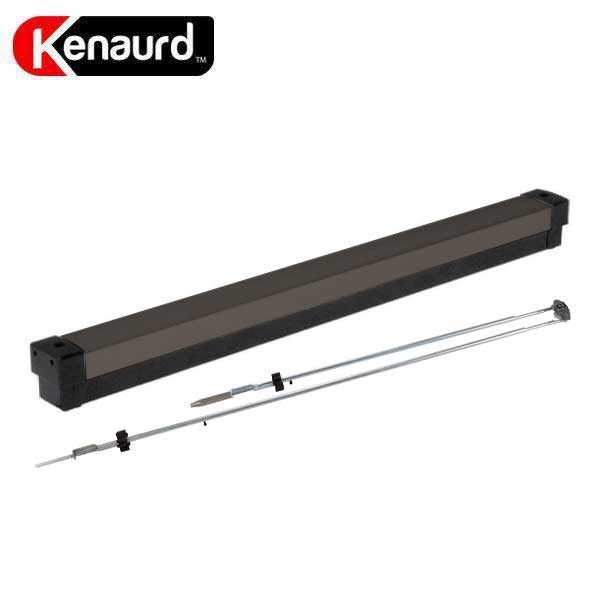

Heavy Duty Narrow Stile - Concealed Vertical Rod Exit Device - Grade 1 - Duranodic Bronze Finish - 36"
Heavy Duty Narrow Stile - Concealed Vertical Rod Exit Device - Grade 1 - Duranodic Bronze Finish - 36"
Kenaurd
Regular price
$175.45 USD
Regular price
$228.69 USD
Sale price
$175.45 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-KED03-CV36-DU
Item Number: 8147
The Premium Heavy Duty Narrow Stile Concealed Vertical Rod Exit Device is 36 In. in length and comes in a Duranodic Bronze Finish. The item is suitable for doors where there is no projection on the face. Manufactured of extruded anodized aluminum, it is durable enough for the most demanding applications.
More Info Below
| Device Type | Concealed Vertical Rod Exit Device (No Trim) |
| Certifications | UL Listed Grade 1 |
| Device Length | 34.5" for 28" to 36" doors |
| Bar Height | Standard model adjusts from 30" to 44"" |
| Door Height | Standard model fits up to 8 ft door with bar height at 40"- 44" |
| Door Thickness | Suits 1-3/4" standard up to 2-1/4" |
| Handing | Field Reversible |
| Material | Pushbar made of extruded aluminum, clad or anodized material |
| Stile Width | Minimum 2" Stile |
| Projection | 2-5/8" when fully projected |
| Finish | Duranodic Bronze Finish |
Downloads:
Specifications
