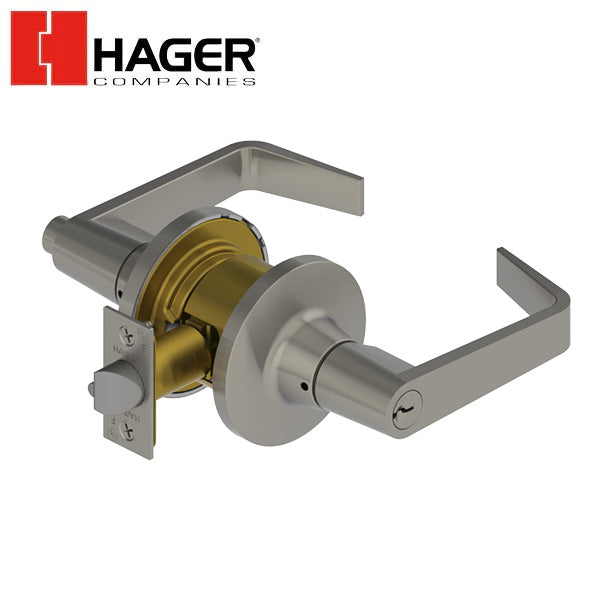

Hager - 3680 - Lever - Storeroom - 2-3/8-2-3/4 - Satin Chrome - Withnell Lever - Schlage C Keyway

Hager - 3680 - Lever - Storeroom - 2-3/8-2-3/4 - Satin Chrome - Withnell Lever - Schlage C Keyway

Hager

$86.91 USD
$190.28 USD $86.91 USD
Sale Sold out
Shipping calculated at checkout.
HGR-368000R26D000WCDA

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • UL10C Positive Pressure Rated
    • BHMA Certified ANSI A156.2, Series 4000, Grade 2
    Functions
    • Storeroom (F86)
    Lever Options
    • Archer, August and Withnell
    Cylinders/Cores
    • Keyed Different - standard
    • Cylinder drilled 6 pin, Keyed 5 pin - standard
    • Other Keying options, including 6 pin keyed, available from factory
    • Zero bit cylinders will be 6 pin keyed
    • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
    Backsets
    • Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)
    Door Thickness
    • 1-3/8" - 1-3/4" (35 mm - 45 mm)
    Exposed Trim
    • Rose - Wrought brass, bronze, and stainless steel
    • Lever - Zinc based, plated to match BHMA symbols
    Keyway
    • Schlage C - Standard, other keyways optional
    Latchbolt Type
    • 1/2" (13 mm) throw, stainless steel
    • 1" x 2-1/4" (25 mm x 57 mm) faceplate
    • Deadlocking latchbolt prevents manipulation when door is closed
    • Square corner faceplate standard, round corner optional
    Notes
    • No exposed mounting screws
    • Non-handed
    Options
    • Split Finish
    Rose Diameter
    • 2-15/16" (75 mm)
    Strikes
    • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
    • Optional strikes available
    Warranty
    • Five-Year


    Downloads:
