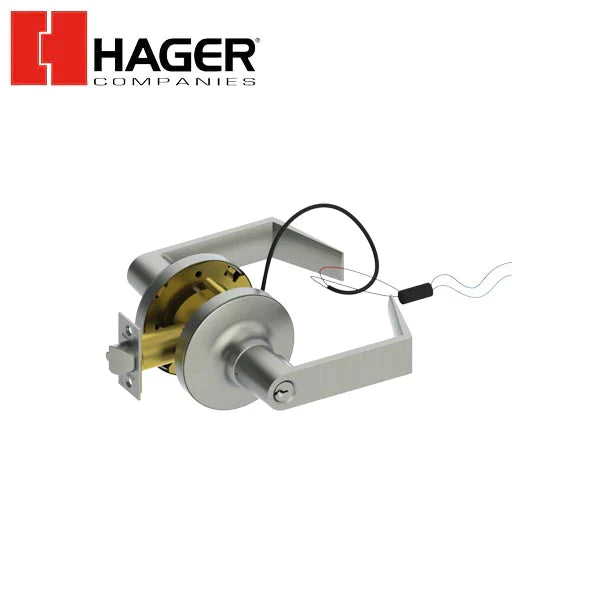

Hager - 3480 - Lever - Electrified Storeroom - 2-3/4" - Satin Chrome - Optional Lever - Optional Keyway

Hager - 3480 - Lever - Electrified Storeroom - 2-3/4" - Satin Chrome - Optional Lever - Optional Keyway

Hager

$217.64 USD
$476.50 USD $217.64 USD
Sale Sold out
Shipping calculated at checkout.
HGR-348002N26D000A0NA00CXXXX

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Backsets
    • 2-3/4" (70mm)
    • 2-3/8" (60mm)
    Certifications
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • UL10C Positive Pressure Rated
    • BHMA Certified ANSI A156.2, Series 4000, Grade 1
    • ANSI A250.13 Severe Windstorm Compliant
    • Miami Dade County, FL NOA #17-1226.23
    Cylinders/Cores
    • Keyed Different - standard
    • Cylinder drilled 6 pin, Keyed 5 pin - standard
    • Other Keying options, including 6 pin keyed, available from factory
    • Zero bit cylinders will be 6 pin keyed
    • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
    • LFIC 0-BIt or combinated, brass 6 pin cores sold separately
    Door Thickness
    • 1-3/8" - 2" (35 mm - 51 mm)
    Electric Modifications
    • RX (Request to Exit) available with or without EL or EU electrification
    Exposed Trim
    • Wrought brass, bronze, and stainless steel
    • Lever is zinc based, plated to match BHMA symbols
    Functions
    • Electrified Locking (EL) - Storeroom (F86) or Electrified Unlocking (EU) - Storeroom (F86)
    Keyway
    • Schlage C - Standard; Other finishes optional
    Latchbolt Type
    • 1/2" (13 mm) throw, stainless steel
    • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
    • Deadlocking latchbolt prevents manipulation when door is closed
    • 3/4" (19 mm) throw latchbolt available
    Lever Options
    • Archer, August and Withnell
    Notes
    • SFIC option available (Cores are sold separately - standard)
    • LFIC option available (Cores sold separately - standard)
    • No exposed mounting screws
    • Non-handed
    • Not available in knobset
    Options
    • Lead Lining
    • Tactile Warning
    • Quick Connect
    Rose Diameter
    • 3-17/32" (90 mm)
    Strikes
    • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike, Square corner
    • Optional strikes available
    Voltage
    • 3480EL/3480EU
    • 12-24V AC/DC (250mA Max in rush, 10mA Max holding)
    • 125 VAC (3 AMP maximum current)
    • 30 VDC (2 AMP maximum current)
    • Wire leads (22 AG current)
    Warranty
    • One-Year Electrified components
    • Lifetime on mechanical components
