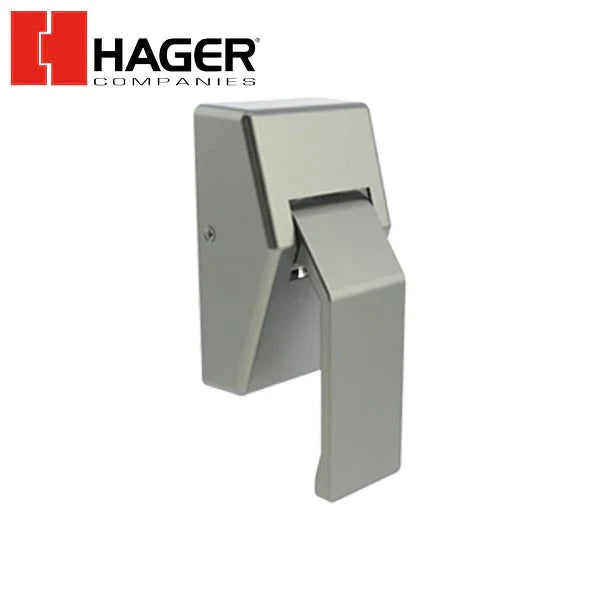

Hager - 311H - Push/Pull Hospital Latch - 2-3/4" - Satin Chrome

Hager - 311H - Push/Pull Hospital Latch - 2-3/4" - Satin Chrome

Hager

$198.55 USD
$322.19 USD $198.55 USD
Sale Sold out
Shipping calculated at checkout.
HGR-311H0002N000026D

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • ANSI A156.2 closest equivalent (bored latch- series 4000- grade 2)
    Bolt Diameter
    • 3/4" (19 mm)
    Bolt Throw
    • 1/2" (13 mm)
    Door Thickness
    • 1-3/4" (45 mm)
    Escutcheons
    • 3-1/16" x 5" (78 mm x 127 mm)
    Material
    • Zinc, Stainless Steel
    Notes
    • 2-3/4" (70 mm) backset standard, 5" (127 mm) backset optional
    • Non-handed
    Optional Features
    • Engraving Handed: A (standard) - "PUSH" down; "PULL" down. B - "PUSH" up; "PULL" down. C - "PUSH" up, 'PULL" up. D - "PUSH" down, "PULL" up.
    Product Description
    • Push/Pull Hospital Latch
    Projection
    • 2-5/8"
    Push and Pull Levers
    • 1-15/16' x 4-1/2" (49 mm x 114 mm)
    Strike Size
    • 1-1/8" x 2-3/4" (57 mm x 29 mm) T-strike and 1-1/4" x 4-7/8" (124 mm x 32 mm) ASA strike are both included
