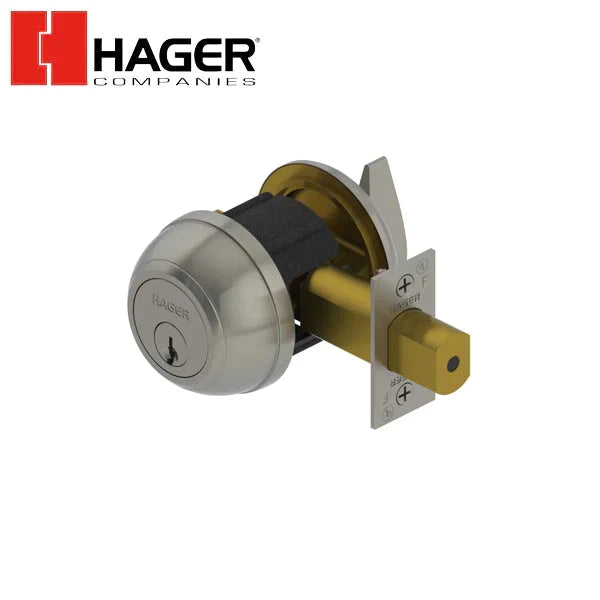

Hager - 3115 - Deadbolt - Cylinder And Thumbturn - 2-3/4" - Satin Chrome - Optional Keyway

Hager - 3115 - Deadbolt - Cylinder And Thumbturn - 2-3/4" - Satin Chrome - Optional Keyway

Hager

$91.83 USD
$201.06 USD $91.83 USD
Sale Sold out
Shipping calculated at checkout.
HGR-311502N26D00000N000CXXXX

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • ADA Compliant ANSI A117.1 Accessibility Code
    • UL/cUL Listed for all functions up to 3 hours "A" label single doors
    • UL10C Positive Pressure Rated
    • BHMA Certified ANSI A156.36, Grade 1
    • ANSI A250.13 Severe Windstorm Compliant
    • Miami Dade County, FL NOA #18-0816.08
    Functions
    • Cylinder x Thumbturn (E2151)
    Cylinders/Cores
    • Keyed Different - standard
    • Cylinder drilled 6 pin, Keyed 5 pin - standard
    • Other Keying options, including 6 pin keyed, available from factory
    • Zero bit cylinders will be 6 pin keyed
    • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
    Backsets
    • 2-3/4" (70 mm)
    • 2-3/8" (60 mm)
    Deadbolt
    • 1" (25 mm) throw, brass with concealed hardened steel roller
    • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
    Door Thickness
    • 1-3/4" - 2" (45 mm - 51 mm) - Standard
    • 2-1/4" (57 mm) - Optional for conventional keyed only
    Exposed Trim
    • Wrought Brass or Bronze
    Keys
    • Two operating keys supplied per lock
    Keyway
    • Schlage C - Standard, other keyways available
    Notes
    • SFIC option available (Cores are sold separately - standard)
    • Non-handed
    Options
    • Split Finish
    • Additional Deadbolts and strikes available
    Strikes
    • 1-1/8" x 2-3/4" (29 mm x 70 mm) no-lip strike - standard
    • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA deadbolt strike – optional
    Warranty
    • Lifetime
