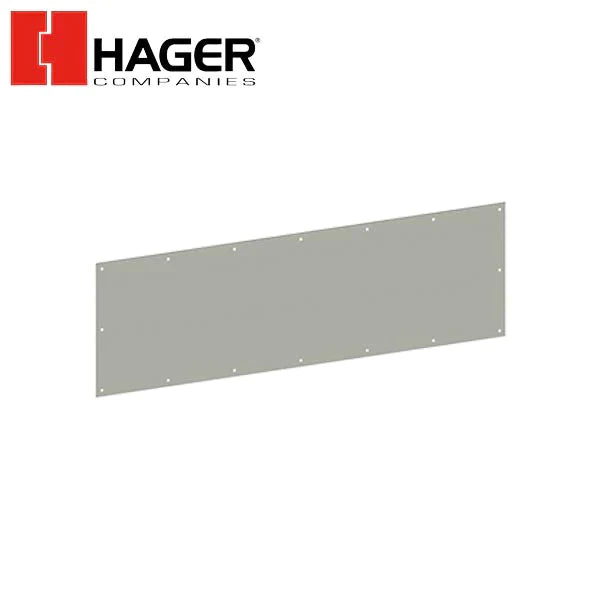

Hager - 190S - Protection Plate - Optional Size - Optional Finish

Hager - 190S - Protection Plate - Optional Size - Optional Finish

Hager

$14.63 USD
$23.74 USD $14.63 USD
Sale Sold out
Shipping calculated at checkout.
HGR-190S00040035032DXXXX

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • EPD
    • NFPA 80 Standards 6.4.5 Protection Plates
    • 6.4.5.1 Factory installed protection plates shall be installed in accordance with the listing of the door
    • 6.4.5.2 Field installed protection plates shall be labeled and installed in accordance with their listing
    • 6.4.5.3 Labeling shall not be required where the top of the protection plate is not more than 16" (406 mm) above the bottom of the door
    • Meets ANSI A156.6 for J101 Metal Armor Plate, J102 Metal Kickplate, and J103 Metal Mop Plate
    Features
    • 4 Beveled Edges
    How to Order
    • Plates are sized on even inches. Odd sizes available and priced to next larger size.
    Material
    • Aluminum, Brass, Bronze, Stainless Steel
    Notes
    • Furnish item number, height, width, and finish (i.e., 190S – 6'' x 30'', US32D)
    • May be ordered with countersunk holes (specify "CSK") at extra charge
    Options
    • UL listed for US32 and US32D with screw fasteners (must specify UL stamp)
    • Self-adhesive tape available on all plates
    • Spanner head screws
    • Torx head screws
    • Round corners - specify 196R
    • Wrap around side and bottom return
    • 0.125" material
    Product Name
    • Door Protection Plate
    Thickness
    • 0.050" (1 mm)
