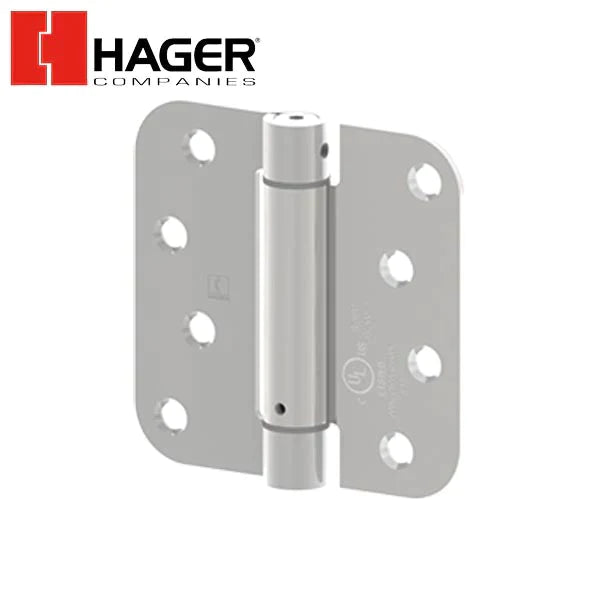

Hager - 1752 - Round Corners 5/8" Radius - Spring Hinge with Fasteners - Optional Size - Optional Finish

Hager - 1752 - Round Corners 5/8" Radius - Spring Hinge with Fasteners - Optional Size - Optional Finish

Hager

$14.05 USD
$24.54 USD $14.05 USD
Sale Sold out
Shipping calculated at checkout.
HGR-175200035003510AXXXX

Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Packaging
    • 1 Hinge w/ Screws
    Notes
    • For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges.
    • Full spring tension may not be required on all hinges.
    • Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges.
    Certifications
    • BHMA Certified, ANSI 4156.17, Grade 1
    • ANSI K51071F
    Fastener Size - Wood
    • 3-1/2" - 3/4 X 9. 4" - 1 X 9.
    Features
    • Round corners - 5/8" (16 mm) radius
    Material
    • Steel
    Maximum Door Weight
    • 45-70 lbs.
    Product Description
    • Round Corners 5/8" Radius, Spring Hinge with Fasteners



    Size Gauge of Metal Hole Count Screw Size (Wood)
    3 1/2 x 3 1/2 (89 mm x 89 mm)
    		 0.106 6 3/4 x 9 FH
    4 x 4 (102 x 102 mm)
    		 0.106
    		 8 1 x 9 FH

    Size Recommended Max
    Door Weight    		 Bearing
    Hinge     		 Spring Hinge
    Location
    3-1/2" x 3-1/2"
    4" x 4"     		 45 lbs.
    70 lbs.
    90 lbs.    		 2
    1
    -    		 1 Center
    2 Center/Bottom
    3 All
