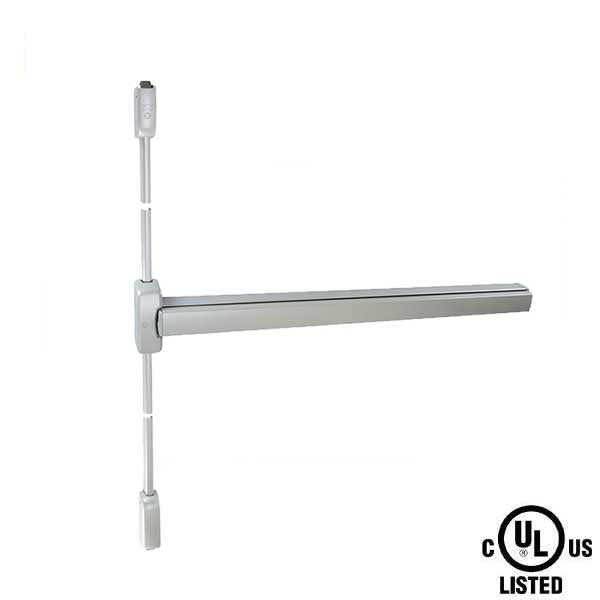

GAAB - T393-04 - Vertial Rod Exit Device - 3 Point Latch - Modular and Reversible - Up to 48" Doors - Satin Chrome

GAAB - T393-04 - Vertial Rod Exit Device - 3 Point Latch - Modular and Reversible - Up to 48" Doors - Satin Chrome

GAAB

$218.40 USD
$214.83 USD $218.40 USD
Sale Sold out
Shipping calculated at checkout.



  • Vertical Rod Exit Device
  • Easy installation
  • UL listed (UL 305)
  • Modular and Reversible
  • Suitable for single and double doors
  • Fully adjustable
  • Dogging / undogging system

Extruded aluminum-made rail case and touch bar measurements: 16 in. - 33 in. (maximum and minimum length)
Material:

Zamak-made front and back covers
Extruded aluminum-made rail case and touch bar
Finish: High-performance epoxy Satin Chrome paint finish with high strength and durability.
Application:

For single and double doors
Suitable for steel, wood, aluminum, and glass
Suitable for heavy traffic doors
Max Dimensions: Suitable for doors up to 8′ height and 4′ width.
Max Weight: 440 lbs.
Handing: Modular and Reversible
Latch: Three-point latching
Strike: roller type
Warranty: 5-year manufacturer warranty
Dogging: Includes dogging / undogging system
Certifications: UL listed (UL 305)
