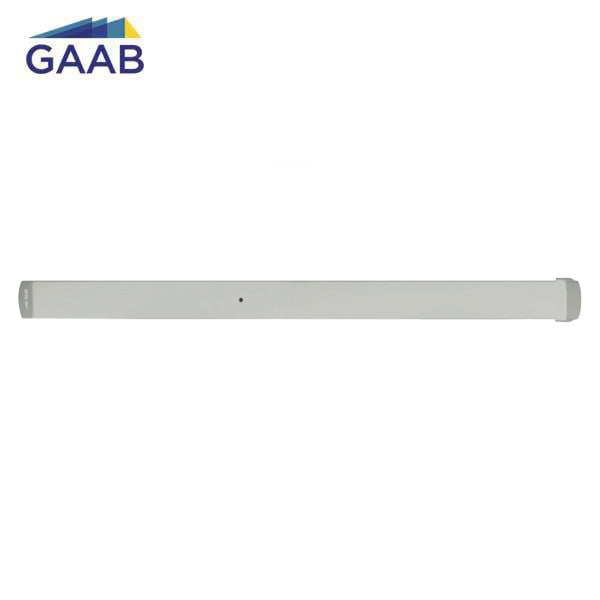

GAAB - T352L02 - Concealed Vertical Rod Exit Device - Without Switch - Up to 48" Doors - Anodized Steel
GAAB - T352L02 - Concealed Vertical Rod Exit Device - Without Switch - Up to 48" Doors - Anodized Steel
GAAB
Regular price
$173.88 USD
Regular price
$208.66 USD
Sale price
$173.88 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Active push bar & back bar made of extruded aluminum
end back bar & caps made of injection aluminum - Top and bottom strikes made of deep drawn sheet steel. Metal Bolts of 9/16"
diameter and 5/8" max projection easily adjustable - Three options length device for 36", 42" & 48". Maximum cutting 6"
- Suitable for doors up to 96" height with device mounted at 40" centerline above finished floor. For higher doors an extension or threaded rod for up to 120' is required (Available separately)
- Suitable for 13⁄4" & 2" doors thickness
- Suitable for doors with up to 3/16" style wall thickness & minimum 2 1⁄2" of style width is required
- Non-handed
- Projection: 3" when fully projected, 2" when dogged
Standard dogging with 3/16" hex key - Suitable for use with any standard 1" to 1-1/4" length, 1-5/32 diameter mortise cylinder with MS® cam in conjunction with the escutcheon (Available separately)
- Without Switch
Specifications:
| Rail case and touch bar measurements: | 36"- 48" in. (minimum and maximum length) |
| Optional Material: | Zamak-made 0.07 in. thick Stainless Steel |
| Finish: | Clear Anodized |
| Type: | Without Switch |
| Size: | 48" |
| Application: |
For single doors. Can be used for double doors ( with T29 Vertical Rod Kit sold separately). Suitable for steel, wood and aluminum. Not for Glass |
| Door Thickness: |
13/4" and 2" |
| Maximum Projection: |
5/8" |
| Maximum Cutting: |
6" Length |
| Mechanical Warranty: |
5 Year |
| Minimum Style Width: |
2-1/2" |
| Style Wall Thickness: |
3/16" |
| Suitable For Door Up To: |
96" Height |
| Certifications: | UL Listed. Fire Rated 90 Mins ANSI Grade 1 |
Some of the compatible exit trims include:
GAB-T840M14
GAB-T840M15
GAB-T840M16
GAB-T840M17
As well as exit trims from other Other Brands like , &
