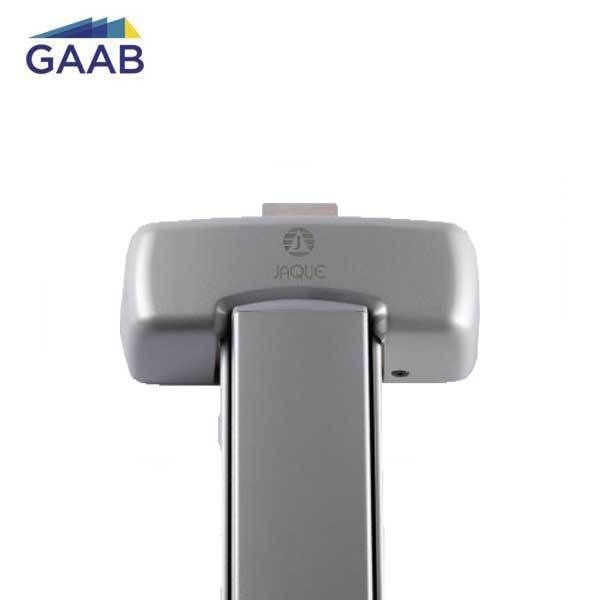

GAAB - T300-04 & T800M14B - Panic Exit Device and Lever Exit Trim - Modular and Reversible - for 33" Single Doors - Single Doors - Satin Chrome

GAAB - T300-04 & T800M14B - Panic Exit Device and Lever Exit Trim - Modular and Reversible - for 33" Single Doors - Single Doors - Satin Chrome

GAAB

$135.81 USD
$178.20 USD $135.81 USD
Sale Sold out
Shipping calculated at checkout.


This T300-04 Panic Exit Device with T800M14B Lever Exit Trim will work seamlessly together to help facilitate ingress and egress. The T300-04 is modular and reversible and will work with up to 33" doors. The T800M14B is an entry function lever that is clutched and reversible. It provides additional security by adding a keyed entry function to the T300-04.

T300-04 Panic Exit Device Specifications

  • Easy installation
  • Modular and Reversible
  • Suitable for single doors
  • Can be used for double doors ( with T29 Vertical Rod Kit sold separately).
  • Fully adjustable
  • Dogging / undogging system
  • The total nominal length of the device:
  • Standard length: 33“ (850 mm)
  • Minimum length: 16“ (400 mm)
  • Suitable for doors up to 8’ (2440 mm) height – 4’ (1220 mm) width
  • To use an exit trim with this device you MUST use a compatible Gaab Exit Trim (listed below)
  • Max weight 440 lbs (200 kgs)


Material: Zamak-made front and back covers. 0.07 in. thickness Steel.
Finish: High-performance epoxy Satin Chrome paint finish with high strength and durability.
Application: For single doors. Can be used for double doors ( with T29 Vertical Rod Kit sold separately).
Suitable for steel, wood, aluminum, and glass.
Total nominal length of the device: Standard length: 33“ (850 mm)
Minimum length: 16“ (400 mm)
Suitable for doors: up to 8’ (2440 mm) height – 4’ (1220 mm) width
Max Weight: 440.925 lbs.
Handing: Modular and Reversible
Latch: Three-point latching option for single doors.
Warranty: 2-year manufacturer warranty
Dogging: Includes dogging / undogging system
Certifications: IRAM and INTI listed.
Approved under UNE EN-1125 standards (European)
Approved with 200,000 opening cycles.


To use an exit trim with this device you MUST use a compatible Gaab Exit Trim:
GAB-T800M11
GAB-T800M14B - included in this bundle
GAB-T850M04B
GAB-R750-00

T800M14B Lever Exit Trim Specifications

Application
 Lever Exit Trim Application For GAAB Push / Touch / Pad series Exit Devices
Function Keyed Entry Function
Handing Reversible
Door Thickness 1-1/2″ to 2-1/2″
Trim Lever Exit Trim
Cylinder
 Yale Style Cylinder w/ 2 Keys
Finish Grey
Manufacturer Warranty 2- Year Manufacturers Warranty

T800M14B Downloads

T300-04 Downloads
