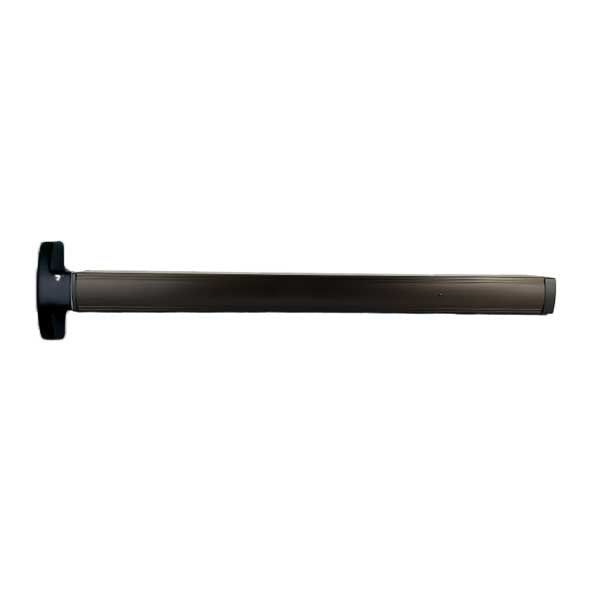

First Choice - 3692 - Concealed Vertical Rod Exit - 36"- 42" - Cylinder Prep Kit without Key Cylinder - Dark Bronze Anodized - Grade 1
First Choice - 3692 - Concealed Vertical Rod Exit - 36"- 42" - Cylinder Prep Kit without Key Cylinder - Dark Bronze Anodized - Grade 1
First Choice
Regular price
$363.00 USD
Regular price
$567.49 USD
Sale price
$363.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
FCH-3692XX-BR
Sleek and attractive, the First Choice 3692 is ANSI Grade 1 (500,000 cycles) and UL listed. With durable anodized finishes and high-performance coatings on solid metal end caps, these devices are made for tough, high traffic conditions.
Features:
- Exit Device shall be First Choice series 3600 Concealed Vertical Rod.
- Designed for use on aluminum storefront doors only and not intended for wooden doors.
- Narrow Stile model utilizing low profile touch bar projecting 3” from face of door.
- Device shall use 3/8” steel vertical rods with steel latch bolts engaging stainless steel strikes to lock two points in the opening.
Specifications
Key Cylinder Preparation | Include Cylinder Prep. Kit /without Key Cylinder |
Application | Narrow Stile Application |
Bolt | 1/2” Bottom Latch Bolt Throw |
Device lengths | 36" - 42" |
Door Width | 36" - 42" |
Hand | non-handed |
Limited Manufacturer Warranty | 2 Years |
Fire Rated | No |
Dimensions | 2 1/2” Push Bar Height 41 5/16” Centerline Height Typical Center Case Cover - 6 5/8” Tall by 1 1/4” Wide |
Certifications | ANSI A156.3 – 2008 Grade 1. |
