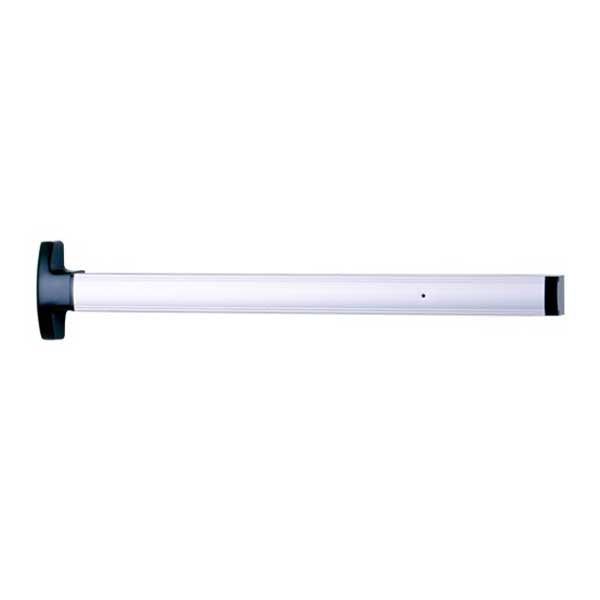

First Choice - 3690 - Concealed Vertical Rod Exit - 48" - Exit Only - No Trim - Aluminum Anodized Finish - Grade 1

First Choice - 3690 - Concealed Vertical Rod Exit - 48" - Exit Only - No Trim - Aluminum Anodized Finish - Grade 1

First Choice

$506.71 USD
$609.70 USD $506.71 USD
Sale Sold out
Shipping calculated at checkout.

Sleek and attractive, the First Choice 3690 is ANSI Grade 1 (500,000 cycles) and UL listed. With durable anodized finishes and high-performance coatings on solid metal end caps, these devices are made for tough, high traffic conditions

Features:

  • Exit Device shall be First Choice series 3600 Concealed Vertical Rod.
  • Designed for use on aluminum storefront doors only and not intended for wooden doors.
  • Narrow Stile model utilizing low profile touch bar projecting 3” from face of door.
  • Device shall use 3/8” steel vertical rods with steel latch bolts engaging stainless steel strikes to lock two points in the opening.

Specifications

Trim No Trim - Exit Only
Application Narrow Stile Application
Bolt 1/2” Bottom Latch Bolt Throw
Device lengths 48" (1219 mm)
Door Width 48" (1219 mm)
Hand non-handed
Limited Manufacturer Warranty 2 Years
Fire Rated No
Dimensions 2 1/2” Push Bar Height
41 5/16” Centerline Height Typical
Center Case Cover - 6 5/8” Tall by 1 1/4” Wide
Certifications ANSI A156.3 – 2008 Grade 1.
