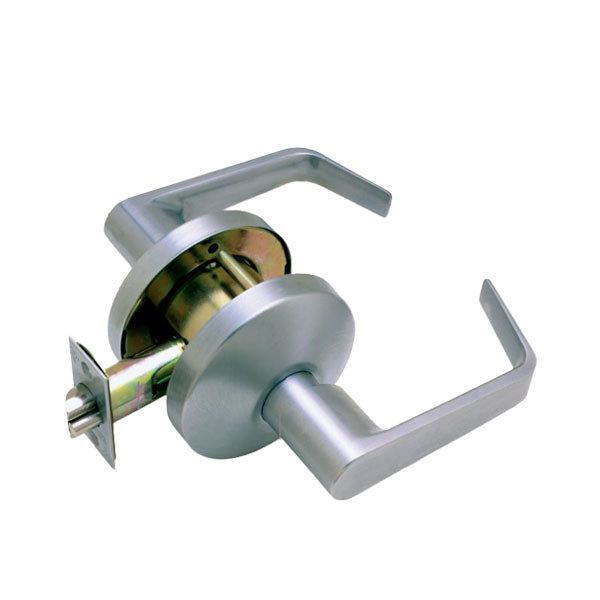

Falcon - B101S - Cylindrical Leverset - Dane - Passage - 2 3/4" Backset - Satin Chrome - Grade 2
Falcon - B101S - Cylindrical Leverset - Dane - Passage - 2 3/4" Backset - Satin Chrome - Grade 2
Falcon
Regular price
$116.88 USD
Regular price
$140.25 USD
Sale price
$116.88 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
When you need a tough, reliable lock at the right price point for a retail, industrial or multi-family project, you need a Falcon B Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart specification in new construction. With upgraded finishes, these locks deliver style as well as strength. Falcon B Series lock options include an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most importantly, they’re backed by one of the best names in the business.
Feature
- All lever designs meet ADA requirements
- Heavy wrought brass or bronze roses over steel through-bolted rose inserts
- UL Listed 3 hour
- Cylinder housings and plugs machined from solid brass
- Brass or cold-formed steel construction with zinc dichromate plating for rust resistance
Specifications
| Function | Passage - Both Levers Always Unlocked |
| Finish | 626 - Satin Chrome |
| Screws | Wood or metal doors |
| Door thickness | 1 3⁄8" to 2" |
| Backset | 2 3⁄4" |
| Lever Style | Dane |
| Handing |
Non-handed |
| Rose | 3-1/4" diameter |
| Latches | 1⁄2" bolt projection |
| Strike | Square corner 1-1/4" x 4-7/8" ANSI ASA Strike |
| Door Preparation | 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep. |
| Fire Rated | UL/ULC listed for 3 hour fire door |
| Certifications | Certified ANSI/BHMA A156.2, Series 4000, Grade 2, UL Listed |
| Manufacturer's Warranty | Limited Lifetime |
