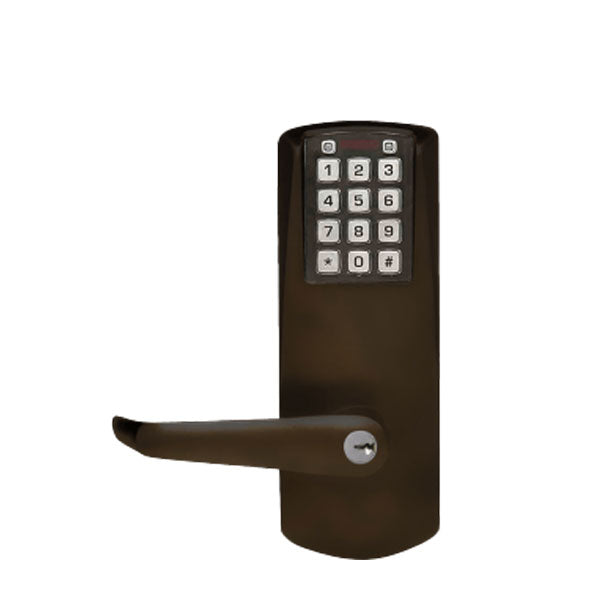

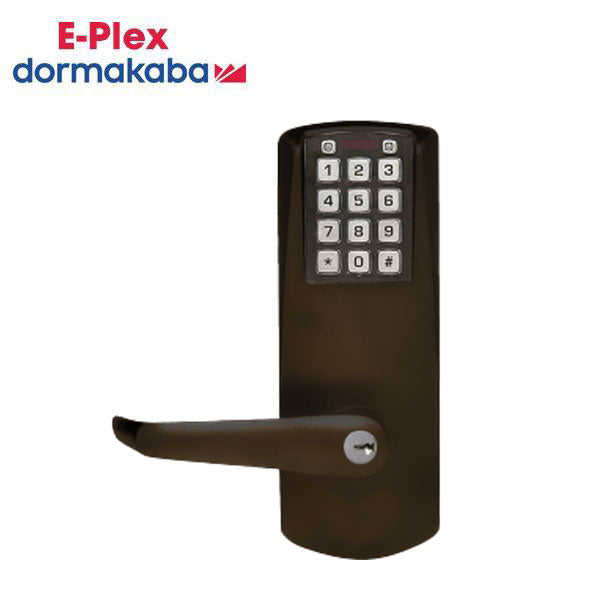

E-Plex - E2031XS - Electronic Pushbutton Cylindrical Lever Set - Schlage 'C' - 2¾" Backset - Dark Bronze - Grade 1

E-Plex - E2031XS - Electronic Pushbutton Cylindrical Lever Set - Schlage 'C' - 2¾" Backset - Dark Bronze - Grade 1

E-Plex

$605.72 USD
$689.42 USD $605.72 USD
Sale Sold out
Shipping calculated at checkout.

The E-Plex 2000 Series provides exterior access by combination while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.

Features:

  • Requires no wiring to or through the door—eliminates risk of damage from pinched wires that can result in costly callbacks
  • Multiple Users—100 Codes
  • Non-handed; pre-assembled for left-hand door installations—easily changed in the field
  • The most recent 1,000 events are recorded in memory, including the use of mechanical key override. Software is required to view Audit Events.
  • Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft Excel-based software.
  • PIN access
  • Five different authority levels allow who has access to specific lock functions, including: Master, Manager Level, Access User, Service, and Maintenance Level
  • User Parameters: Code length—adjustable to accept 4 to 8 digits
  • Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Re-lock time—adjustable from 2 to 20 seconds


Specifications:

Construction:

 Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers.

Locking Device:

 Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset

Numeric Keypad:

 Vandal resistant, solid metal pushbuttons

Handing:

 Non-handed, pre-assembled for left-hand door installation—easily changed in the field

Finish:

 Dark Bronze (US13)

Key Override:

 Key-In-Lever, Kaba Cylinder (Schlage "C" Keyway) included

Backset:

 2¾" (70 mm) backset

Latch:

 ½" (13 mm) throw latch, floating face plate

Minimum Stile Recommended:

 5" (127 mm)

Strike:

 Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike

Door Preparation:

 ASA 161 (easily installs on door preparation with three additional through bore holes; wood or metal doors)

Door Thickness:

 1⅜" (35 mm) to 2½" (64 mm); pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (50 mm)

Accessibility Standard:

Americans with Disabilities Act (ADA)

Certification:

ANSI/BHMA Grade 1 Certified

Fire Rating:

3-hour UL/ULC fire rating for "A" label doors

Warranty:

3 years manufacturer warranty
