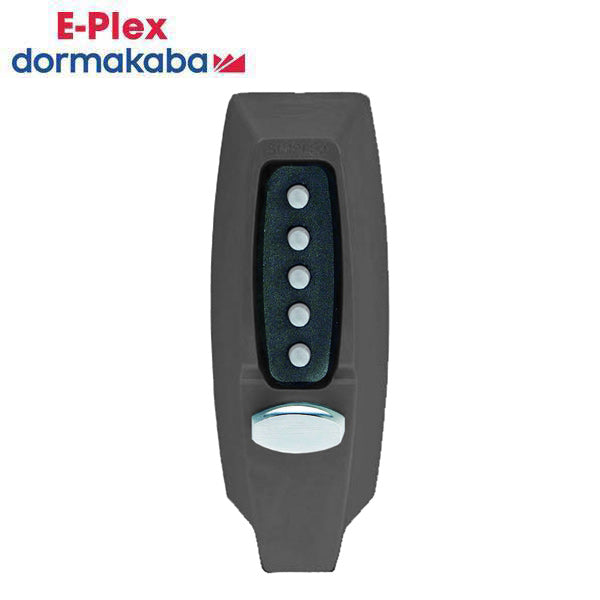

E-Plex - 7108 - Mechanical Push Button Deadbolt Keyless Lock - Thumbturn - Black

E-Plex - 7108 - Mechanical Push Button Deadbolt Keyless Lock - Thumbturn - Black

E-Plex

Regular price $168.12 USD
Regular price $201.73 USD Sale price $168.12 USD
Sale Sold out
Shipping calculated at checkout.

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

Simplex 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking latch models automatically relock each time the door closes.This fully mechanical lock elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features:

  • No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Deadbolt—must be manually relocked
  • Number of Codes: Single access code—one easy-to-manage code for all users
  • Programming: Lock is easily programmed via keypad without removing lock from the door.
  • Handing: Field reversible
  • Operation Mode: Pushbutton Access
  • Economical: A cost effective access control solution



Specifications:


Construction:

All metal cast front housing; force-resistant, clutch-protected exterior thumbturn

Numeric Keypad:

Vandal resistant, solid metal pushbuttons

Handing:

Field reversible

Latch:

1" (25 mm) tubular deadbolt
½" (13 mm) deadlocking latch
⅝" (16 mm) rim deadlocking latch

Backset:

2¾" (70 mm) or 2⅜" (60 mm) backset

Finish:

Satin Chrome 26D (626)

Strike:

Models 7102 and 7108: Flat deadbolt strike plate
Model 7104: Curved lip strike plae
Model 7106: Box strike for in-swing doors and flat strike for out-swing doors

Minimum Stile Required:

4" (102 mm)

Installation:

1⅜" (35 mm) diameter through bore
1" (25 mm) diameter cross bore
¾" (19 mm) through bore
2 x ¼" through bores

Door Thickness:

1⅜" (35 mm) to 2¼" (57 mm), wood or metal

Durability:

Weather resistant

Warranty:

1-year warranty

Finish:

Black




Downloads:


Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page . Once you have the ticket contact SLK Hardware for the return.
