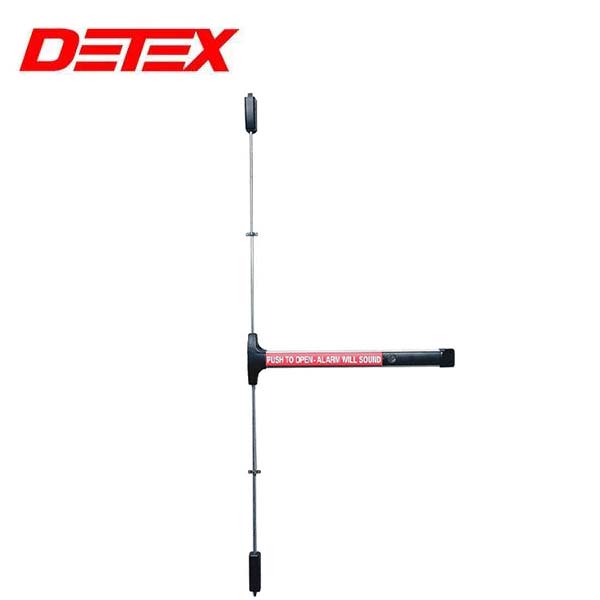

Detex V50 Surface Vertical Rod Exit Device - Narrow Stile - 36" - 628 - Satin Aluminum - Clear Anodized

The V50 Surface Vertical Rod device is a heavy-duty panic and fire exit hardware at an economical price designed for use on all types of single and double doors without a mullion. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. Secure and durable panic and fire exit hardware at an economical price.

Features

• Priced to be the best value for durable, attractive panic hardware
• Reduces employee and customer theft
• Patented mounting plate and strike locator replaces paper templates
• Durable design provides years of trouble-free protection, saving on replacement costs
• Fast and easy installation saves time and money
• Angled end cap deflects damage away from device
• Fits any door in almost any décor
• Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements
• Powered by standard 9-volt battery
• Armed and disarmed field selectable status indicator
• 100 decibel alarm
• Visual and audible arming indicators
• Field selectable key rearm or 2 min. auto rearm



Specifications

Door Width	36"
Door Height	84"
Door Thickness	1-3/4" - 2-1/4"
Door Stile	2-1/2″ stile doors with 98 semi-mortise strike Standard doors with 99 strike
Top Latch	3/4" deadlocking
Bottom Drop Bolt	5/8" dia. x 5-5/8" long secures into strike plate
Handing	Non- Handed
Strike	Top Surface - non-roller top strike for V50/51 Series Surface Vertical Rod Devices
Push Bar	3-14" Extended, 2-1/2 Depressed
Power	9 Volt Battery
Dogging	Single mortise 1-1/8″ cylinder (sold separately) provides arming and dogging – 1/8 turn cylinder dogging
Bolt	3/4" Deadlocking Pullman-type latch bolt
Alarm	100+ Decibels
Rearming	Selectable: key rearm or 2 minute automatic rearm
Finish	628 (Satin Aluminum)
Fire Rated	3 Hours
Warranty	10 Year Mechanical 3 Year Electrical

Installation:

Downloads:

• Catalog
• Installation Instructions
• Parts List
