Detex - V40 - Rim Exit Device - Electric Alarm with Battery (EB) - Black Anodized - 36"

Detex - V40 - Rim Exit Device - Electric Alarm with Battery (EB) - Black Anodized - 36"

Detex

$509.44 USD
$594.36 USD $509.44 USD
Sale Sold out
Shipping calculated at checkout.

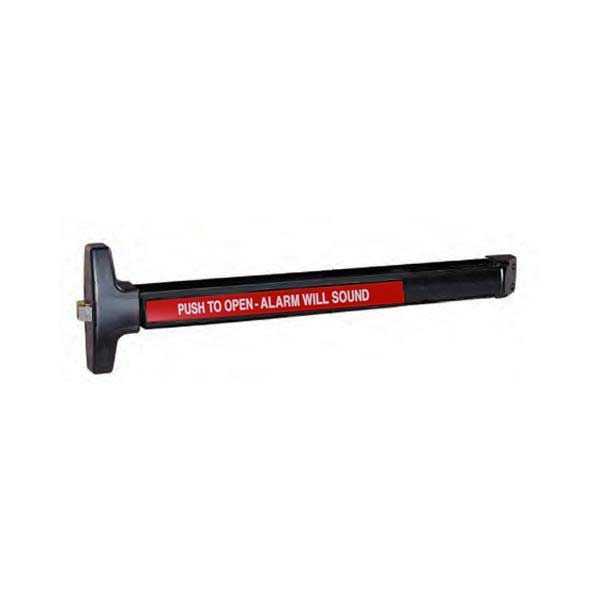

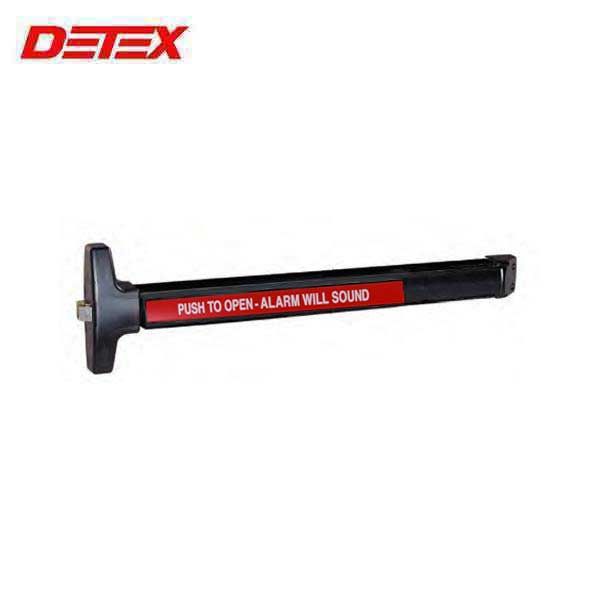

The V40 device is designed for doors and gates requiring a stand alone, battery powered, alarmed, rim exit panic device. The alarm, with approximately 100dB, will sound when someone attempts to exit, alerting management that an unauthorized exit has occurred.

  • V40 Rim Device, Wide stile
  • EB- Elec. Alarm with Battery
  • CD- Cylinder Key Dogging
  • 711- Black, Aluminum (P/PN trims)
  • 99- Surface Strike
  • 36- Door width in inches

Features

Push bar Length 36"
Door Thickness: 1-3/4" - 2-1/4"
Door Stile Fits standard doors with 99 strike
Fasteners Machine and Self-Drilling Screws
Dogging Cylinder Key Dogging
Bolt Stainless steel, 3/4" deadlocking Pullman-type latch bolt
Rearm
 Field selectable key rearm or 2 min. auto rearm
Alarm Type
 Visual and audible arming indicators
Alarm Status
Armed and disarmed field selectable status indicator
Alarm Sound
 100+ Decibel Alarm
Certifications
 UL Listed Panic Hardware: UL Listed Fire Exit Hardware for 3 hours, maximum 4'x10' single doors and pairs of 4'x8' with F90KR keyed removable Mullion
Meets ADA requirements UBC 97, Standard 7-2 and UL10C for positive pressure
ANSI/BHMA certified A156.3
Meets NFPA 80 & 101 for Life Safety
Miami-Dade County, Florida NOA 10-0303.02
State of Florida Approval FL9052 EXP. 04/07/15
California State Fire Marshall -4140-0127:105 and 3725-0127:108
