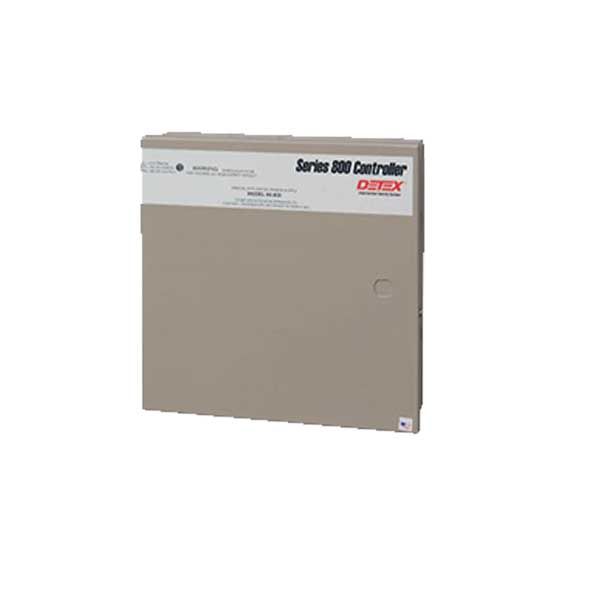

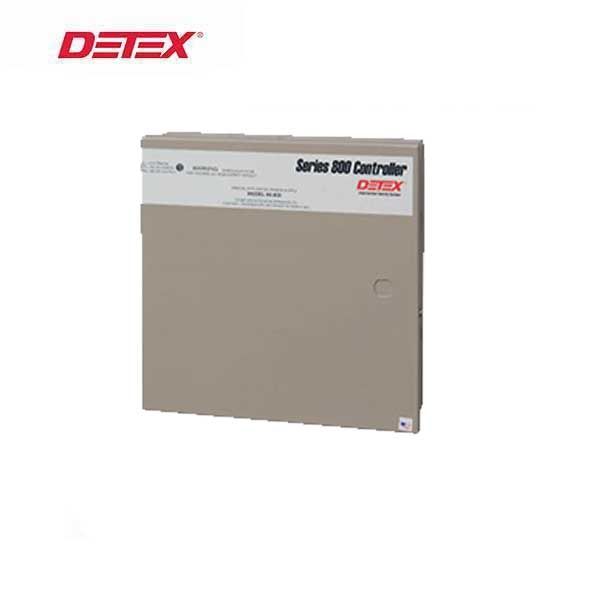

Detex - DTX-81-800 - Power Control System - Single Doors - 120VAC/24VDC

The Detex 81-800 is logic and power supply that converts 120VAC into regulated and filtered 24VDC, providing a secure, consistent, power feed to various electrified door hardware accessories, primarily access control components, such as Detex latch retraction exit devices

• Filtered and regulated 24VDC power protects the circuitry from stray power surges and spikes

• Detex allows you to specify and supply the economical 81-800 for single door latch retraction applications
• The Series 800 products have been engineered to provide superior operation through design integration with all Detex electric latch retraction options
• 1 AMP continuous, controlling 1 Detex latch retraction (ER) device for 1 door
• Battery charging circuit included standard (batteries sold separately)
• Design provides enough power to cycle Detex latch retraction motor, one time, even if power is lost while attempting to open the door and gain access
• Standard output used to signal automatic door operations
