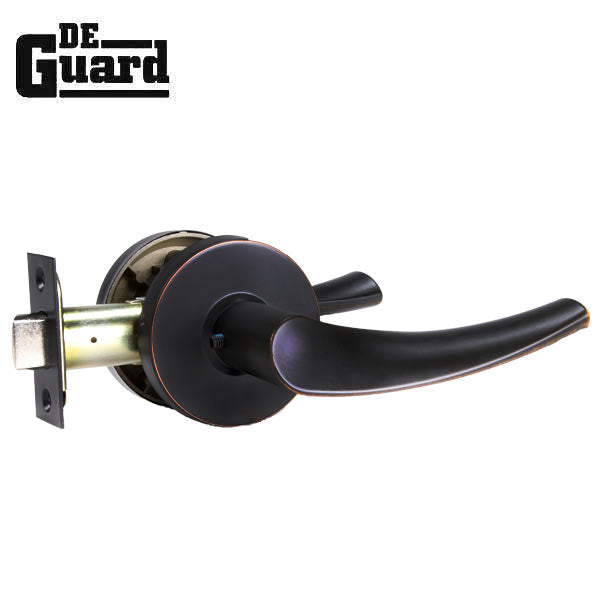

Contemporary Wave Lever Set - Passage - Round Rose - Aged Bronze - Grade 3
Contemporary Wave Lever Set - Passage - Round Rose - Aged Bronze - Grade 3
Deguard
Regular price
$38.47 USD
Regular price
$46.15 USD
Sale price
$38.47 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-DCL07-PS-ORB
This Contemporary Wave Lever Set provides the perfect balance between form, function, and state-of-the-art security. This Aged Bronze finish is beautiful, resistant to smudging, and offers outstanding durability. These locksets are designed to fit most residential doors, have adjustable latches, and meet the uncompromising grading standards of the ANSI for residential and builders hardware.
Features
- No locking function
- Easy Installation: only tool required is a screwdriver
- No Privacy key required.
- Latch features a radius faceplate or can be easily converted to a drive-in style
- Does not have a keyed cylinder, not for use where keyed security is required
- Reversible handing
Specifications
| Configuration | Leverset |
| Assembled Depth (in.) | 6.41 in |
| Assembled Height (in.) | 2.56 in |
| Assembled Width (in.) | 5.77 in |
| Cross bore diameter (in.) | 1 in. |
| Lever grip length (in.) | 4.82 |
| Lever housing height (in.) | 2.5 |
| Lever housing width (in.) | 2.5 |
| Maximum door thickness (in.) | 1.75 |
| Minimum door thickness (in.) | 1.375 |
| Projection (in.) | .49 |
| Strike height (in.) | 2.25 |
| Strike width (in.) | 1.75 |
| Throw length (in.) | .5 |
| Function | Passage |
| Lever Style: | Wave |
| Cylinder | No Cylinder |
| Finish | 716 - Aged Bronze |
| Handing | Field Reversible |
| Backset | Adjustable for 2-3/4", 2-3/8" backset |
| Latch Faceplate | Round Corner |
| Door Thickness | 1-3/8" to 1-3/4" (35mm ~ 45mm) |
| Handle Length | 2.1875 in. |
| Manufacturer Warranty | Limited Lifetime Warranty |
| BHMA Certification | ANSI Grade 3 |
