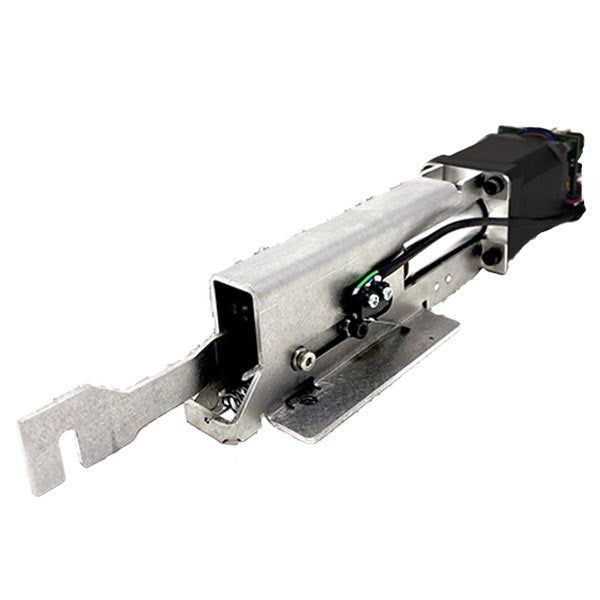

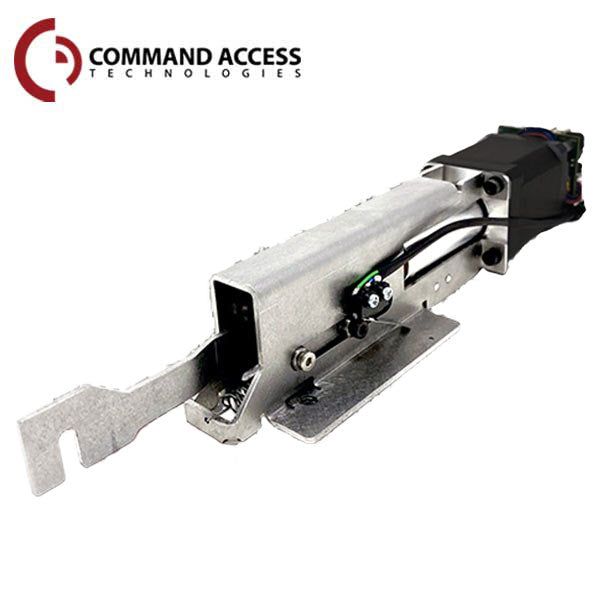

Command Access - Electrified Latch Retraction Kit - For Falcon 1690 / 1790 and First Choice 3600 / 3700 series - 2/18 Gauge - 12/24V +/- 10% VDC

The Command Access MLRK1-FAL17 is a cost-effective and straightforward way to upgrade your Falcon 1690/1790, First Choice 3600/3700, & AHT 4/5 series device to motor-driven latch retraction in the field. MLRK1-FAL17 features a robust, straightforward field-installable motorized latch retraction kit for Falcon Dor-o-Matic 1690/1790 & First Choice 3600/3700 series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1 TOUCH PTS “Push to Set” technology, making post-installation adjustments a breeze.

Features:

• Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• 1 Touch “PTS”: Quick and easy post installation adjustment

• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position.

• Low Torque Mode - Now capable of pulling all devices, even tall vertical rod doors!

• Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel.

• 6’ cable with Robust Quick Molex Connect for MM5 module to 6' Power Lead to easily connect to power supply.




Specifications:

Downloads:

• Spec Sheet
• Installation Sheet
