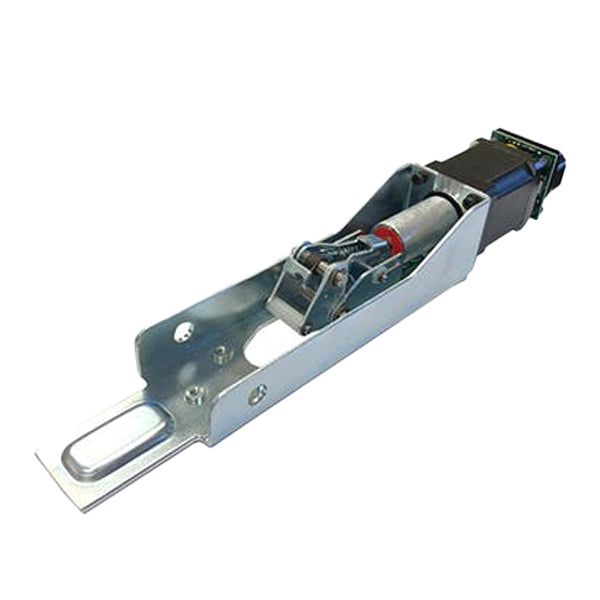

Command Access - Electrified Latch Retraction Kit - For Dorma 9000 Series Exit Devices - 18 Gauge - 24V +/- 10% VDC

SLK-CAT-MLRK1-DOR

The Command Access MLRK1-DOR is a practical and cost-effective way to convert a mechanical Dorma series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, it features an updated motor module with 2 different energy consumption settings from energy-conscious to high torque to get the tough jobs done!

Features:

• MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• “PTS”: 5-second electronic adjustment for easy post-installation adjustment
• Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position
• Low Current Draw - Field switchable to “High Torque” mode
• Up to 300’ wire run with 2-18ga wire - Long wire runs provide installer with the convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel
• 6” robust Molex Pigtail + 6’ Power lead to easily connect to power supply lead


Specifications:

Downloads:

• Spec Sheet
• Installation Sheet
