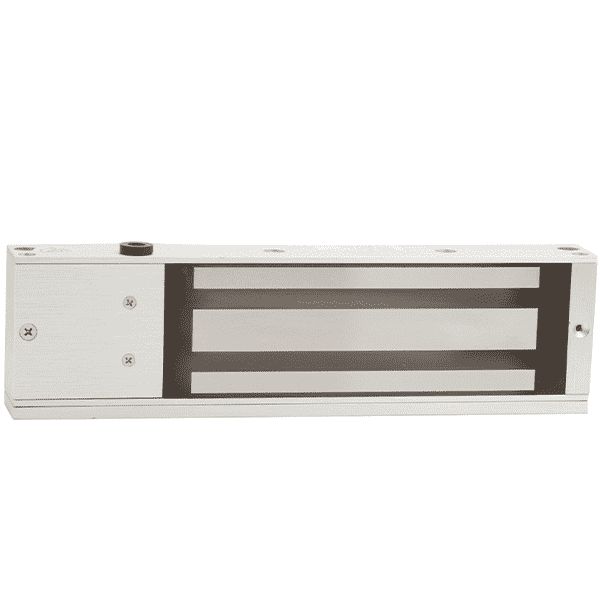

Camden CX-91S-12 - Single Door Surface Mount Mag Lock - 1200 lb Holding Force - 12/24 VDC - UL/ULC Listed

Camden CX-90 and CX-91 Series single door magnetic locks offer the best performance and value. There is a range of 300, 600 and 1,200 Lb. models with the option of a built-in 'TDS' module that provide an adjustable timer, lock sensor, door status switch, relay and LED. This Mag Lock has 1200 Lb Holding Force, Basic model

• 600 and 1,200 Lb. single door models are UL and CUL listed
• Weather and vandal resistant construction proven over thousands of installations
• Surface and mortise mount models
• Compatible with all access/egress systems
• Field selectable 12/24 VDC operation
• On board MOV power surge protection prevents damage to mag lock
• A wide range of mounting brackets and spacers available
• Lifetime warranty

Specifications:

Voltage:	12/24 VDC
Current Draw:	CX-90 Series: 360 mA @ 12 VDC 180 mA @ 24 VDC CX-91 Series: 500 mA @ 12 VDC 250 mA @ 24 VDC
Temp Range:	5°F to 122°F (-15°C to 50°C)
Contact Rating:	TDS versions Bond Sensor: 1 A @ 30 VDC Door Status Switch: 0.5 A @ 30V AC/DC
Time Delay:	TLS versions: 0 to 30 Seconds
Dimensions:	CX-90S-03: 6-1/2" x 1-3/8" x 13/16" (165mm x 35mm x 21mm) CX-90M-03: 8" x 1-3/8" x 13/16" (203mm x 35mm x 21mm) CX-91S-06: 9-7/8" x 1-7/8" x 1" (251mm x 48mm x 25mm) CX-91M-06: 9" x 1-1/2" x 1-1/8" (229mm x 38mm x 29mm) CX-91S-12: 10-1/2" x 2-7/8" x 1-7/8" (267mm x 73mm x 48mm) Armature Plate: 300 Lbs.: 5-1/8" x 1-1/4" x 1/4" (130mm x 32mm x 6mm) 600 Lbs.: 7-15/16" x 2-3/16" x 5/8" (202mm x 56mm x 16mm) 1200 Lbs.: 7-15/16" x 3" x 5/8" (202mm x 76mm x 16mm)

Spec Sheets

• Spec Sheet

Reference Guides

• Guide To Code Compliant Installation of Magnetic Locks
• Magnetic Lock Cross Reference

Manuals

• User Manual
• Mounting Template
