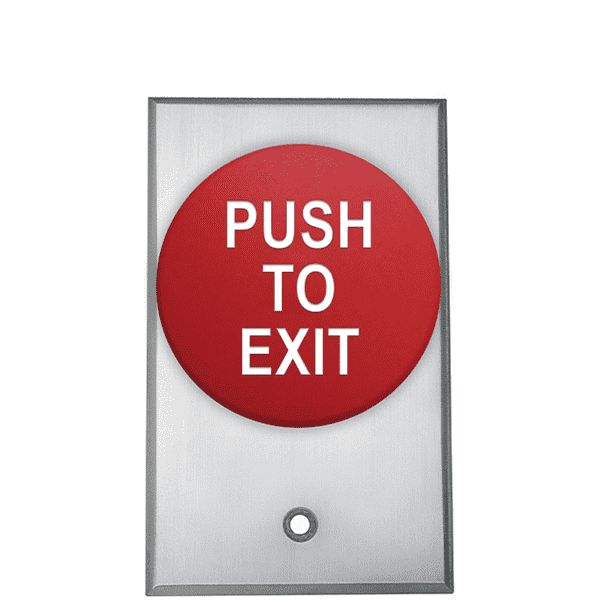

Camden CM-5085RPTE - Push/Exit Single Gang Switch - Pneumatic Time Delay - w/ Aluminum Faceplate 2-3/8" - DPST

CM-5000 Series heavy duty mushroom push buttons are specially designed and manufactured to meet the stringent demands of high traffic exit control applications. Buttons are 2-3/8" (60mm) diameter and available in either green, red or blue. Switches feature 1/4" thick brushed aluminum single gang faceplates.

Note: Button engraved graphic options, as shown, are only available on Momentary Switches. Push/Pull and Push/Turn Switches cannot be engraved across the center of the button.

• Large palm button (red, blue or green)
• Vandal and tamper resistant
• Indoor or outdoor applications
• Large engraved symbols or words
• Spring return, push/pull, or push/turn to release operation
• Available with integrated 1-60 sec pneumatic time delay
• Color coded 18 AWG spade connections
• 3 year warranty with '2 for 1' replacement

Specifications:

Voltage:	12/24 VDC
Contact Type:	SPDT and DPST models
Switch Type:	Momentary / Maintained / Push-Pull / Push-Turn
Current Rating:	6 A @ 30 VDC
Temp Range:	-13°F to 158°F (-25°C to 75°C)
Switch Life:	100,000 cycles
Dimensions:	4-1/2" x 2-3/4" x 1-3/4" (114mm x 40mm x 44mm)
Std. Finish:	Brushed Aluminum
