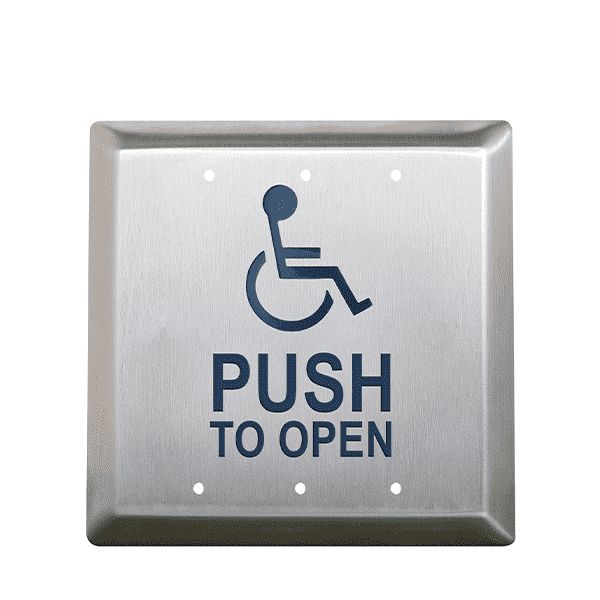

Camden CM-45/4 - Square Push Plate Switch - w/ Push to Open Sign - 4-1/2"
Camden CM-45/4 - Square Push Plate Switch - w/ Push to Open Sign - 4-1/2"
Camden
Regular price
$54.19 USD
Regular price
$134.59 USD
Sale price
$54.19 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-CMD-CM-45/4
Item number: 6903
CM-45 (concealed screws) and CM-46 Series (exposed screws) 4-1/2" square push plate switches mount to standard single/double gang electrical boxes. The SPDT (and optional DPDT) switches are rated 15 amps @ 30 VDC. Push switches are offered with different graphics in various architectural finishes. Weather resistant and water tight configurations also available.
- CM-45 and CM-46 offer stainless steel construction. CM-46CB aluminum.
- 4 stud switch design and rubber dampers for quieter operation
- Large variety of graphics options
- Available in a range of architectural finishes
- 3 year warranty with '2 for 1' replacement
Specifications;
| Voltage: | 12/24V AC/DC |
| Switch Type: | Momentary |
| Contact Type: | SPDT Form 'C' |
| Current Rating: | 15 A @ 30 VDC |
| Mounting: | Single or Double Gang |
| Std. Finish: |
CM-45/46: US32 / 630 CM-46CB: Blue Paint |
| Dimensions: |
CM-45/46: 4-1/2" x 4-1/2" x 1-1/4" (114mm x 114mm x 32mm) |
Spec Sheets
- CM-45-46_Spec Sheets_R6 pdf 0.64 DOWNLOAD
