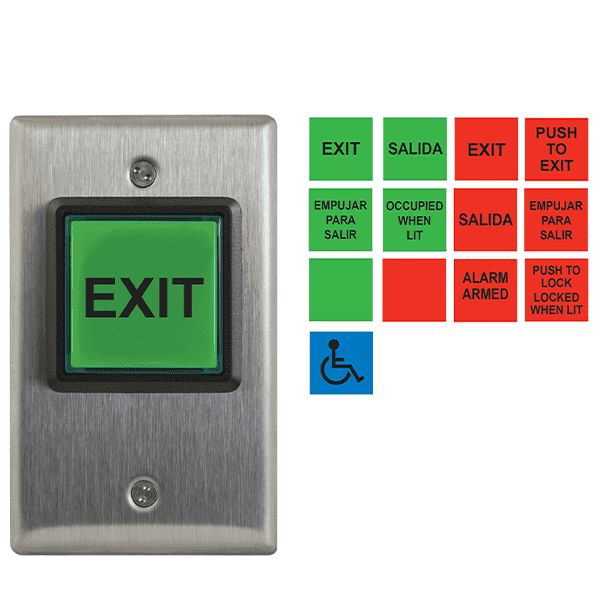

Camden CM-30U - Push/Exit Square Switch - LED Illuminated - w/ English & Spanish Insert Labels -12V-28V

Camden CM-30U - Push/Exit Square Switch - LED Illuminated - w/ English & Spanish Insert Labels -12V-28V

Camden

Regular price $42.47 USD
Regular price $72.60 USD Sale price $42.47 USD
Sale Sold out
Shipping calculated at checkout.

SLK-CMD-CM-30U
Item number: 6895

M-30 Series UL compliant LED illuminated 'request to exit' (REX) switches conform to NFPA code requirements and are ADA compliant. They are designed to control electric locks, electromagnetic locks, electric strikes and low energy door operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions and many other applications.

Where electronic time delay is required (i.e. door held open), Camden offers model CM-30EE with double break circuitry.

  • High visibility 2" square button
  • Single gang stainless steel faceplate
  • 'C' and 'U' models offer the largest selection of insert labels (see info below for labels included)
  • 'E' model offers economical single label 'Push to Exit' version
  • LED bulb provides super-bright operation and longevity (10 year estimate)
  • 3 year warranty with '2 for 1' replacement

Specifications

Voltage:  12/24 VDC
Contact Type:  SPDT Form 'C'
Contact Rating:  10 A @ 30 VDC
Switch Type:  Momentary
Current Draw:  LED Bulb: 14 mA
Dimensions:  4-1/2"x 2-3/4" x 1-7/8"”
(114.mm x 70mm x 48mm)
Std. Finish:  US32/C32D

Spec Sheets
Reference Guides
  • Push Button Switch_Cross Reference pdf 0.15 DOWNLOAD
