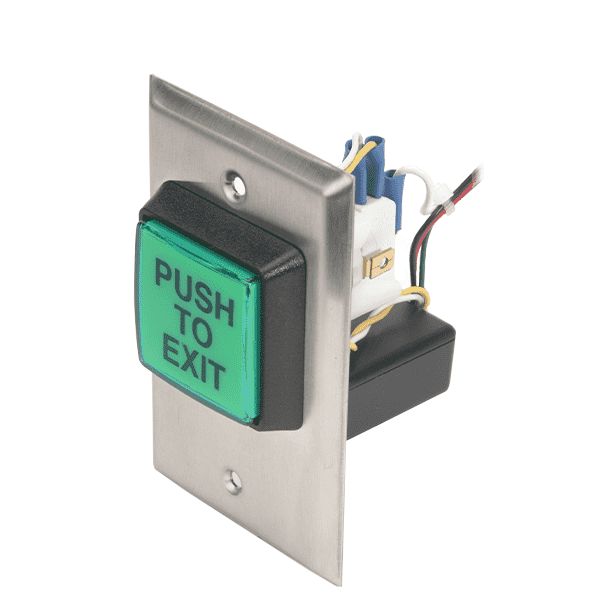

Camden CM-30EE - Push/Exit Switch - LED Illuminated - w/ Fixed Timer

SLK-CMD-CM-30EE
Item number: 6896

CM-30EE and CM-30AT LED illuminated exit switches are high visibility, economical 'request to exit' (REX) controls. Buttons are backlit in green with black PUSH TO EXIT text. They are supplied with a single gang industrial grade stainless steel faceplate and tamperproof screws.

CM-30EE is supplied with an integrated 30 second fixed timer. CM-30AT is supplied with an adjustable 30 second timer. Pushing the button cuts power to the magnetic lock and activates the timer. In-wall mounting box included.

• Large 2" square illuminated button mounted on stainless steel faceplate
• Heavy duty stainless steel faceplate
• CM-30EE: 30 second fixed timer
• CM-30AT: 30 second adjustable timer
• In-wall back box included
• 12/24V with LED bulb
• Tamper proof screws and driver included
• CM-30EE: Double break design for additional security
• 3 year warranty with '2 for 1' replacement

Specifications:

• CM-30EE-AT_Spec Sheets_R2 pdf 0.44 DOWNLOAD

• Push/Exit Button_Cross Reference pdf 0.20 DOWNLOAD

• CM-30EE_EELED_Manual pdf 0.56 DOWNLOAD
