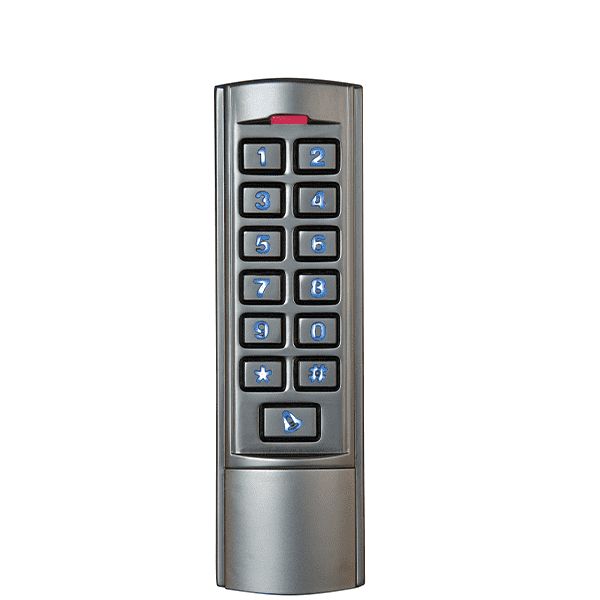

Camden CM-110SK - Surface Mount Keypad - Weather & Vandal Resistant - 2000 Users - 12VDC

Camden surface mount keypads are rugged, weather and vandal resistant standalone devices for control of electrically locked doors. Camden surface mount keypads feature cast metal housings with metal backlit keypads, ‘Request to Exit’ inputs, tamper alarm and support up to 2,000 users. They may also be used for activating or deactivating machinery, equipment, overhead doors, automatic doors or other electrical device.

• Up to 2,000 users
• Backlit vandal resistant keypad
• All metal construction for wall or jamb mounting
• Weather resistant IP rated
• Adjustable door delay time
• Adjustable door open time
• Tamper alarm output
• Request to Exit device input
• CM-110SK: 8 bit burst Wiegand Output, for connection to an access control system
• Blue backlighting for night time use
• 3 year warranty

Specifications:

Voltage:	CM-550SK: 12 VDC +/- 10% CM-110SK:12 VDC
Protection:	CM-110SK: IP68 CM-550SK: IP65
Current Draw:	CM-110SK: 60 mA CM-550SK: 50 mA
Contact Type:	CM-110SK: (1) Form ‘C’ CM-550SK: (2) Form 'C'
Contact Rating:	CM-110SK: 3 A @ 30 VDC CM-550SK: 2 A @ 30 VDC
Wiegand Interface:	CM-110SK:8 bit burst CM-550SK: NA
Time Delay:	0 – 99 seconds
Alarm Time:	0 – 3 minutes
Temp Range:	CM-110SK: -49°F/+140°F (-45°C/+60°C) CM-550SK: -49°F/+113°F (-45°C/+55°C)
Dimensions:	CM-110SK: 6"H x 1-3/4"W x 1"D (152mm x 45mm x 25mm) CM-550SK: 4-13/16"H x 3-1/8"W x 1-1/16"D (121.67mm x 79.5mm x 26.42mm)

Download:

Spec Sheets

• Spec Sheet

Manuals

• User Manual
