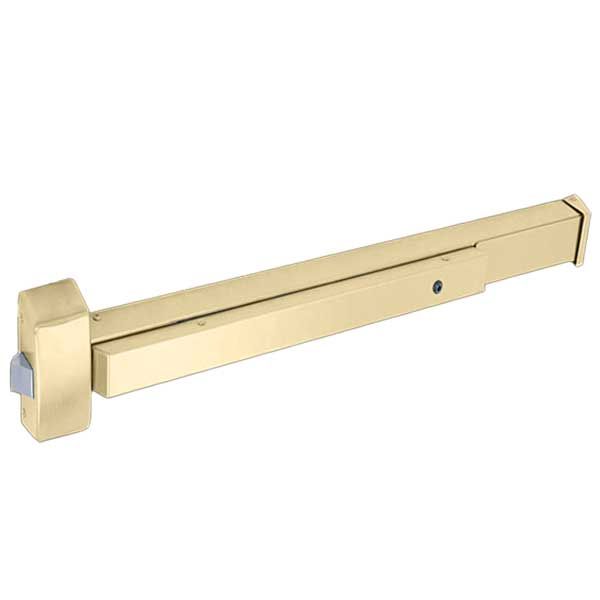

Cal-Royal - A2220EO48 - Rim Exit Device - 48" Doors - Brass Finish - Grade 1
Cal-Royal - A2220EO48 - Rim Exit Device - 48" Doors - Brass Finish - Grade 1
Cal-Royal
Regular price
$154.25 USD
Regular price
$185.11 USD
Sale price
$154.25 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-CRL-A2220EO48-US3
The Cal-Royal A2220EO48 is a value exit device that is ANSI A156.3, GRADE 1 Certified. The A2220EO48 is designed to replace or upgrade existing exit devices.
Features
- For 36"- 48"
- ANSI A156.3, Grade 1
- Conforms & Meets ADA Regulations
- (A) label rating on pairs of doors up to 8’0″ x 8’0″ swinging in same or opposite directions
- Chassis mounted unit construction
Specifications
| Door Size | 1 ¾” thick 4 ½” minimum stile width |
| Chassis | Non-ferrous alloy. Covers stock hollow metal doors with 161 cutout |
| Mounting | Furnished standard with wood and machine screws |
| End Cap | Steel construction |
| Hand | Non handed |
| Latch Bolt | Stainless steel |
| Spring | Stainless steel |
| ANSI Standard | A156.3, Grade 1 |
| Rail Assembly | Heavy gauge steel |
| Strike | 239 packed standard |
| Rail Assembly | Powder Coated Steel |
| Dogging | Allen-type key furnished standard |
| Finish | Brass |
| Certifications | -ANSI/BHMA A156.3, Grade 1 -UL Listed for Panic -Americans with Disability Act (ADA) Compliant, 5 lbs. opening force |
