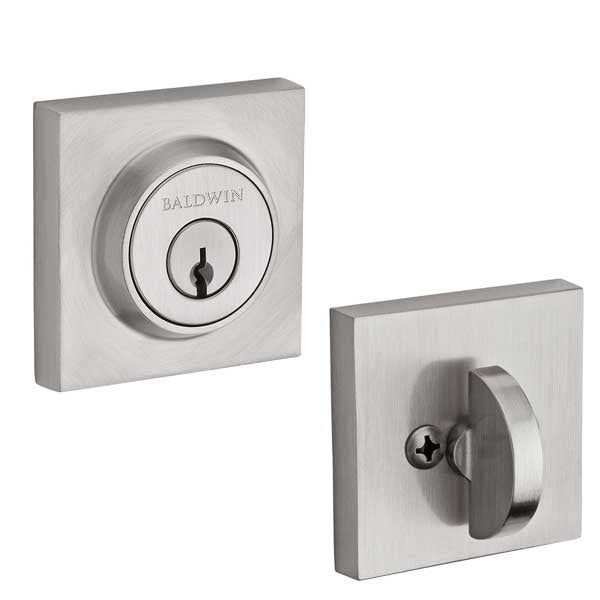

Baldwin Reserve - SC.CSD - Contemporary Square Deadbolt - Singl Cyl - 150 - Satin Nickel - Grade 2

SLK-BLD-SC.CSD.150.6L.DS.CKY.KA
Item Number: 8119

Baldwin Contemporary Square Single Cylinder Deadbolt

Single Cylinder: Baldwin's single cylinder deadbolt has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. Paired with a Baldwin keyed or passage lever or knob makes for a perfect entry solution for a back door or garage.

Features:

• Solid forged brass construction built to last a lifetime.

• Baldwin 5-pin C-Keyway standard

• Versatility and Easy Installation:

• Adjustable Latch for both 2-3/8" and 2-3/4" backset

• Round Corner, Square Corner and Drive-In Latch Plates

• Includes both Round Corner and Square Corner Strike Plates

• Guide Post for Easy Installation

• Accommodates door thickness 1-3/4" to 2".

• 2-1/8" cross bore and 1" edge bore for latch.

• Tested to exceed ANSI/BHMA Grade 2 security.

• Features 1" solid brass throw bolt latch with hardened steel roll pin for additional strength and security.
• Features low profile cylinder projection.

• Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
•


Specifications

Downloads

• Drilling Instructions
• Installation Instructions
• Specifications
