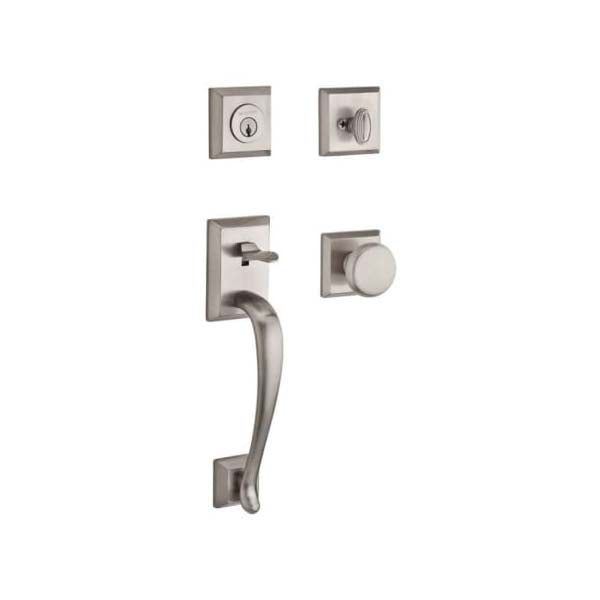

Baldwin Reserve - Napa Knob Handleset - Singl Cyl - Traditional Square Rose - 150 - Satin Nickel - Grade 2
Baldwin Reserve - Napa Knob Handleset - Singl Cyl - Traditional Square Rose - 150 - Satin Nickel - Grade 2
Baldwin
Regular price
$403.95 USD
Regular price
$494.55 USD
Sale price
$403.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-BLD-NAPXROU.TSR.150
Item Number: 10565
Napa Standard C Keyway Single Cylinder Keyed Entry Handleset with Traditional Square Rose and Round Knob on Interior
Single Cylinder Function: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.
Features:
- Baldwin 5-pin C-Keyway standard
- Guide posts for easy installation
- Tested to exceed ANSI/BHMA Grade 2 security
- Reversible handing allows for installation on both left and right handed doors
- Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
- Interior comes in same finish as exterior. If split finish is desired, please contact customer service
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Specifications
| Configuration |
Handleset |
| Cylinder | Single Cylinder - 5 Pin C-Keyway Pin & Tumbler |
| Handing | Reversible Left or Right |
| Finish | 150 - Satin Nickel |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Backset | Adjustable 2-3/8" or 2-3/4", 2-3/8", 2-3/4" |
| Cross Bore |
1" |
| Door Thickness |
2", 1-7/8", 1-3/4" |
| Grip Center to Center |
8.4062 in. |
| Trim Height |
11.5 in. |
| Interior Trim Width |
2.1875 in. |
| BHMA Certification |
Grade 2 |
Downloads
Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact Baldwin directly at 800-566-1986 or visit their support page here. Once you have the ticket contact SLK Hardware for the return.
