Baldwin Reserve - La Jolla Contemporary Lever Handleset - Singl Cyl - Contemporary Square Rose - 150 - Satin Nickel - Grade 2 - RH
Baldwin Reserve - La Jolla Contemporary Lever Handleset - Singl Cyl - Contemporary Square Rose - 150 - Satin Nickel - Grade 2 - RH
Baldwin
Regular price
$338.62 USD
Regular price
$526.64 USD
Sale price
$338.62 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-BLD-SC.LAJXSQU.R.CSR.150.6L.DS.CKY.KA
Item Number: 10228

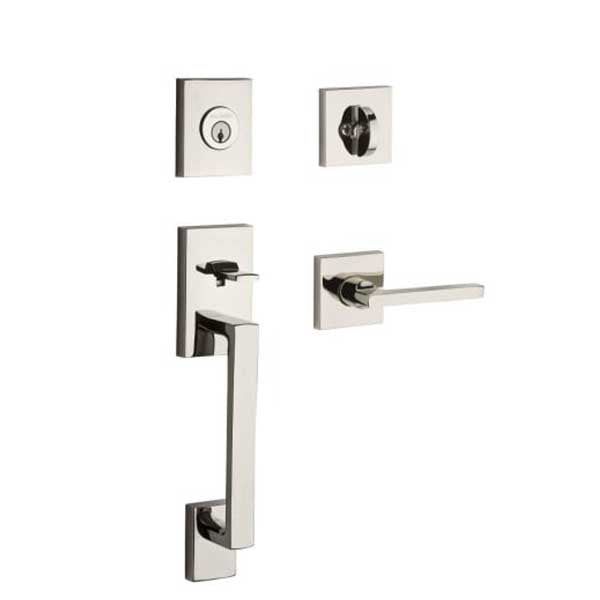

La Jolla Contemporary - Single Cylinder Handleset with Contemporary Square Rose and Square Lever on Interior
Single Cylinder: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.
Features:
- Tested to exceed ANSI/BHMA Grade 2 security
- Solid forged brass construction built to last a lifetime.
-
Designed for right handed doors
- Includes all mounting hardware for quick and easy installation
- Solid brass deadbolt latch with hardened steel roll pin for additional strength and security.
- Interior comes in same finish as exterior. If split finish is desired, please contact customer service.
- Accommodates door thickness 1-3/8" to 2". Up to 2-1/2" thick door with service part kit (Part Number: 8BR0701).
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Specifications
| Configuration |
Handleset |
| Cylinder | Single Cylinder - 5 Pin C-Keyway Pin & Tumbler |
| Handing | Right |
| Finish | 150 - Satin Nickel |
| Latch Faceplate | Square Corner |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Center to Center |
5.5 in. |
| Cross Bore |
2-1/8" |
| Door Thickness |
1-3/8" to 2" |
| Latch | 6 Way Latch |
| Strike | Dual Strike Kit |
| Grip Center to Center |
8.40625 in. |
| Handle Projection |
2.40625 in. |
| Interior Handle Length |
4.25 in. |
| Trim Height |
12.46875 in. |
| Interior Trim Width |
2.5625 in. |
| Overall Height |
17.5 in. |
| BHMA Certification |
Grade 2 |
Downloads
