Baldwin Estate - 85390 - Minneapolis Sectional Handleset - Lakeshore Lever - Single Cylinder - 190 - Satin Black - Grade 2 - Optional Handing
Baldwin Estate - 85390 - Minneapolis Sectional Handleset - Lakeshore Lever - Single Cylinder - 190 - Satin Black - Grade 2 - Optional Handing
Baldwin
Regular price
$263.22 USD
Regular price
$315.87 USD
Sale price
$263.22 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
BLD-85390.190.ACXX

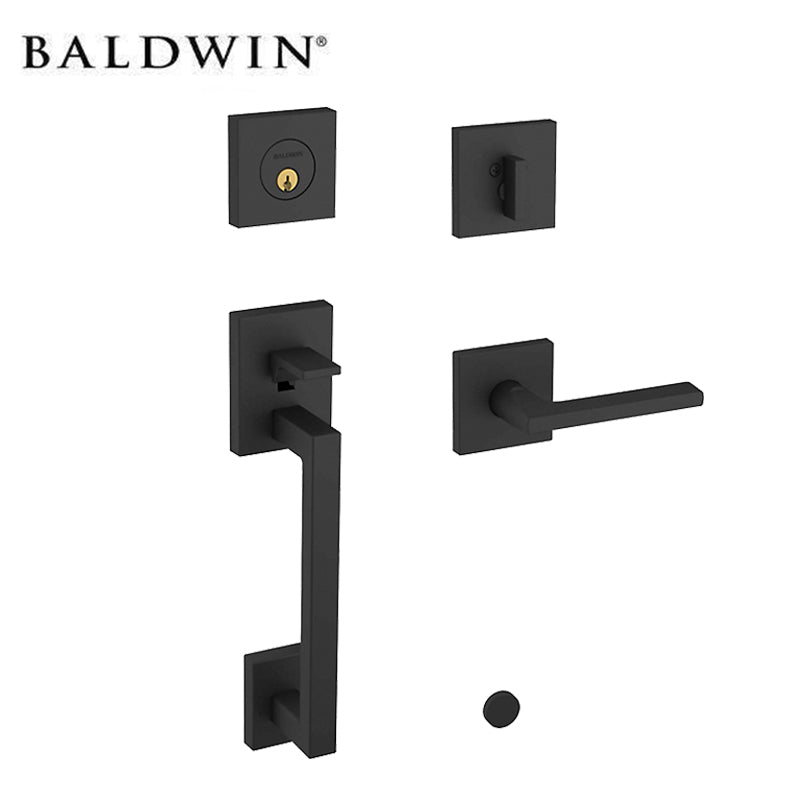

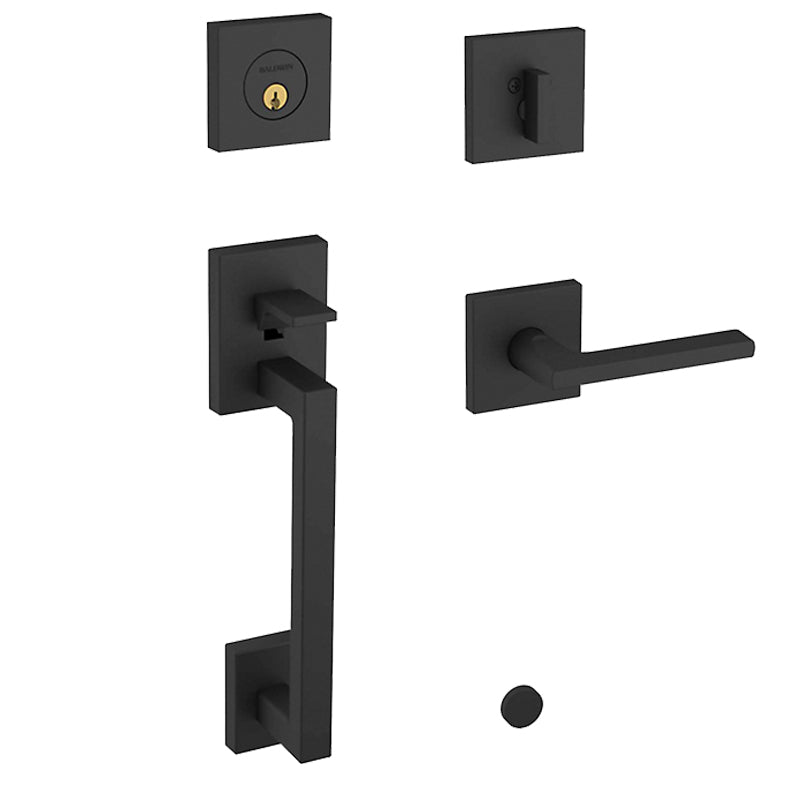

Baldwin BLD-85390.190.ACXX Minneapolis Left Handed Single Cylinder Keyed Entry Sectional Handleset with 5162 Interior Lever
Single Cylinder Keyed Entry: Baldwin's single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.
Features:
- The solid forged brass construction is done in the centuries old European tradition making the Estate collection built to last a lifetime.
- Solid forged brass handleset; deadbold is furnished with a high grade steel strike for ultimate strength and durability
- Specially-designed reinforcing strike constructed of high grade steel for ultimate strength and durability
- The cylinder housing is protected with a free-turning exterior cylinder guard fabricated from solid brass to resist gripping or twisting
- Includes a left handed interior lever
- Lifetime finishes create a surface highly resistant to the effects of weather and normal wear and tear
- Limited lifetime warranty for mechanical parts, guaranteeing Baldwin's standard of excellence
Specifications
| Configuration |
Entry Handleset |
| Cylinder | Single Cylinder |
| Keyway | Baldwin 5 Pin C Keyway |
| Handing | Left Handed, Right Handed |
| Finish | 190 - Satin Black |
| Latch Faceplate | Square Corner |
| Center to Center |
5.5" in. |
| Grip Center to Center | 8" in. |
| Handle Projection |
2.7188" in. |
| Interior Handle Length |
4.46 " |
| Trim Height |
11.28125" in. |
| Trim Width |
2.625" in. |
| Backset | Adjustable 2-3/8" or 2-3/4" |
| Cross Bore |
2-1/8" |
| Edge Bore | 1" |
| Door Thickness |
1-3/4" |
| BHMA Certification |
Grade 2 |
