Autel - MaxiSYS - Ultra - Automotive Diagnostic Tablet With Advanced MaxiFlash VCMI

SLK-AUTEL-MAXISYS-ULTRA

The MaxiSYS Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 13-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced AutoSCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercars
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes



Watch Demonstration and Feature Videos Below

Technical Specs:

• Large 12.9’’ Touchscreen (2732 x 2048) / Android 7.0
• 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
• Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
• Oscilloscope Preset Guided & Component Tests / Waveform Library
• New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
• Split Screen Multi-Application Function / Dual Wi-Fi Connection
• Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
• Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
• Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
• Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader
• ScanVIN: Barcode or Text Recognition with Camera
• Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
• Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
• Enhanced Diagnostic Reports: PreSCAN & PostSCAN
• 18000mAh - 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

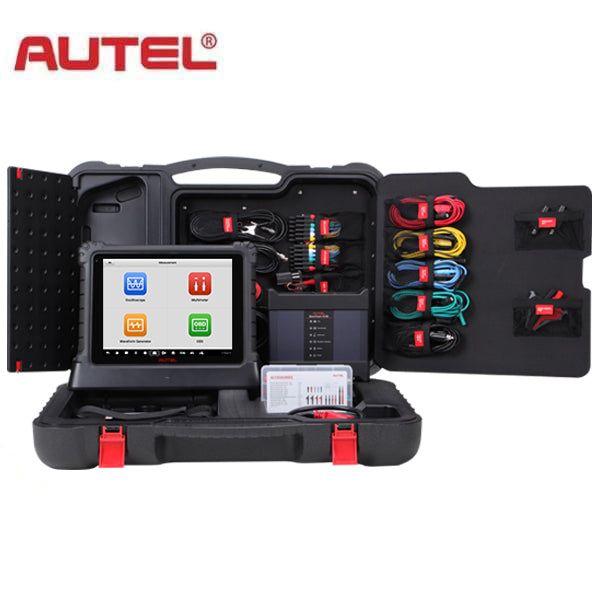

MaxiSYS Ultra Includes:

• Main Unit
• MaxiFlash VCMI
• Main Cable V2.0
• USB 2.0 Cable V2
• AC/DC Adapter(12V)
• Cigarette Lighter
• Light Fuse 6x30mm 2 PCS
• Clipper Cable
• Scope Test Lead 4 PCS
• Multimeter Test Lead 2 PCS
• Secondary Ignition Pickup 2 PCS
• Attenuator 20:1 2 PCS
• Breakout Lead 4x6 PCS
• Multimeter Probe 1x2 PCS
• Flexible Back-pinning Probe 2x2 PCS
• Back-pinning Probe - Red/Green/Blue/Yellow/Black 1x5 PCS
• Back-pinning Probe Screw 2 PCS
• Back-pinning Probe Replacement Needle 20 PCS
• Small Crocodile Clip 2x2 PCS
• Large Dolphin Clip 1x2 PCS
• Quick Reference Guide
• Packing List
• Soft Cloth
• Tool Box 177 x 102.5 x 23.5 mm
• Carrying Case 687 x 170 x 470 mm

Downloads

• Quick Start Guide
• User Manual
