Autel - MaxiSYS - MS909 - Advanced Smart Diagnostic Tablet - MaxiFlash VCI - Measurement System
Autel - MaxiSYS - MS909 - Advanced Smart Diagnostic Tablet - MaxiFlash VCI - Measurement System
Autel
Couldn't load pickup availability
SLK-AUTEL-MS909

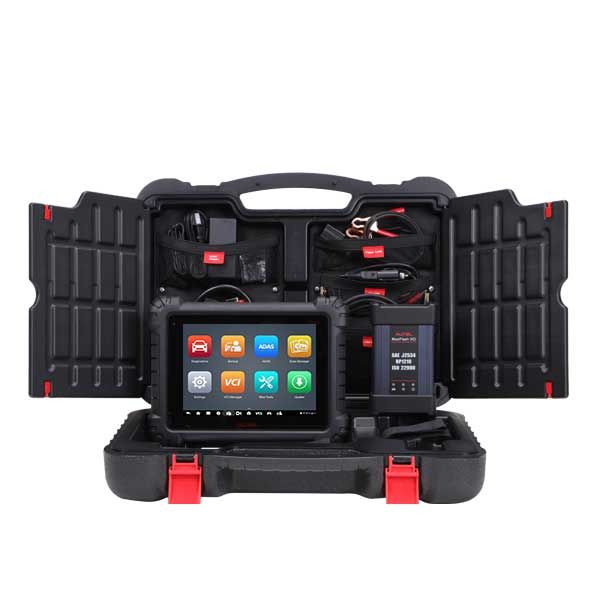

The Autel MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.2GHz Quad + 1.8GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations. The MS909 features a rechargeable Lithium battery providing 8 hours of continues use, and front and rear cameras.
Features and benefits:
- 9.7’’ Touchscreen (1536 x 2048)
- Android 10.0 OS
- 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
- New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
- Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
- Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
- Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
- Code-Related Technical Service Bulletins (on select vehicles)
- License Plate Reader
- ScanVIN: Barcode or Text Recognition with Camera
- Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)
- Includes Cables, Scope Connectors, Carrying Case
- Enhanced Diagnostic Reports: PreSCAN & PostSCAN
- 15000mAh – 3.8V lithium-polyment battery - 8hrs Continuous Use
- 16MP Rear Camera Autofocus with Flashlight & 5MP Front Camera
- 1-year update subscription and warranty (Both can be renewed)
Specifications:
| Operating System | Android 10.0 |
| Processor | Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen |
| Connectivity | Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO) BT V5.0 + BR/EDR GPS USB 2.0 (2 USB TYPE-A ports and a Mini USB port) HDMI 2.0 SD Card (Support up to 256GB) |
| Camera (rear) | Rear: 16 Megapixel, Autofocus with Flashlight Front: 16 Megapixel |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply |
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
