ASSA - Maximum+ Restricted - KIK / KIL Cylinder - 626 - Satin Chrome - Arrow Levers & Knobs
ASSA - Maximum+ Restricted - KIK / KIL Cylinder - 626 - Satin Chrome - Arrow Levers & Knobs
ASSA
Couldn't load pickup availability
SLK-ASS-R28691-626-KA-COMP

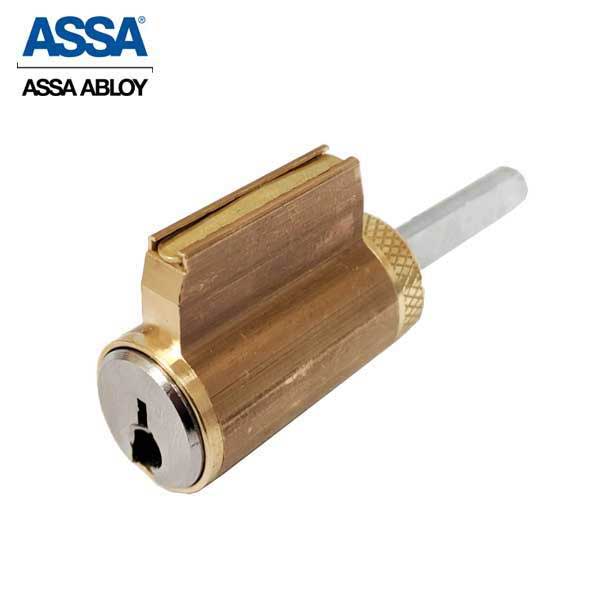

The ASSA Key in Knob/Key in Lever cylinders are designed to replace many original manufacturers’ cylinders in their locksets including Arrow, Corbin/Russwin, Falcon, Sargent, Schlage, Yale and many other manufacturers thus offering the highest level of security available on the market today. The R28691 Maximum+ Restricted
Features:
• Two independent locking mechanisms to ensure security and optimum pick resistance
• Inactive “false” gates in side pins designed to increase pick resistance
• Counter mill in each chamber position to further enhance pick resistance
• Cylinder shell and plug made of high quality brass
• Stainless steel top pins
• Bottom pins and master pins are nickel silver
• Extremely close tolerances
• Can be easily rekeyed in the field
• Patented key control
Includes: 2 Patented Restricted Keys & Duplication Card
| Patented Keyway | Maximum+ Restricted |
| Application | Arrow C, H, L, M, Q, S & W Series Key-in-Knob & Key-in-Lever style |
| Tailpiece |
3 Tailpieces Included for Arrow Style KIL / KIK |
| Certification |
All ASSA Key-in-Knob/Lever cylinders are U.L. 437 listed |
| Warranty | ASSA warrants its cylinders against defective workmanship or wear resulting from defects for one year against manufacturer’s defects |
Diagram
