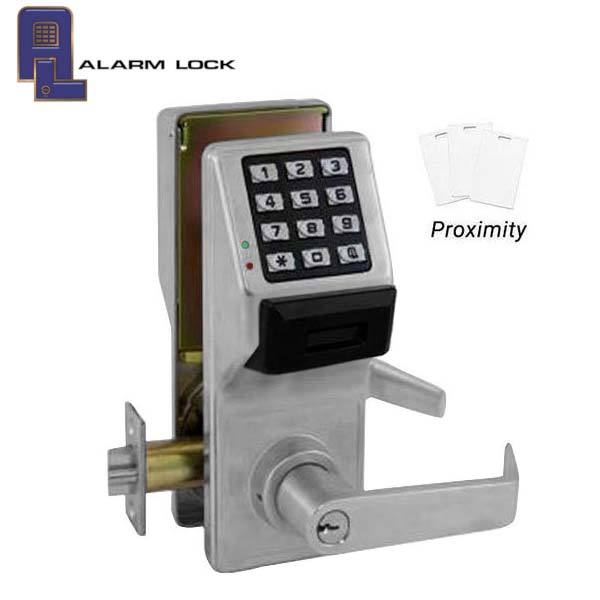

PDL5300-US26D Alarm Lock Trilogy Series Double-Sided Digital Cylindrical Keyless Lock Leverset in Satin Chrome Finish
The Trilogy PDL5300 Series is one of Alarm Lock's most popular pushbutton cylindrical lock with Grade 1 durability. These durable electronic digital locks are available in indoor and outdoor models. The clutch mechanism permits the turning lever without retracting latch and reduces the stress on lock bodies and spindle. It has an outside lever free turning in the locked position. While entering the access code, key bypass or remote bypass allows the lever to retract the latch. Its inside lever always instant egress. Its more advanced access control functions, such as audit trail and HID Prox capability (PDL models) allow personnel from jails/detention centers, interrogation rooms, and casino cash counting rooms to feel reassured as they conduct business under strict environments.
- 2-wire remote override or key bypass capability. Key override is only operable on the primary side. The key on the secondary side is used only to remove the lever and access the batteries.
- It incorporates all of the important features of the most popular Trilogy DL2700 (T2) into a double-sided lock like the DL5200 but with PROX feature and larger user/event audit capacity
- Programming user codes on one side of the door work both sides, cutting your time and labor in half
| LOCK FUNCTION | Entrance Digital PROX Double Sided Keypad Lever Lock w/ Audit Trail |
| OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
| DOOR THICKNESS | 1 5/8" to 1 7/8." |
| BACKSET | 2 3/4" Standard. |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| USERS | Holds up to 2000 PIN Codes with four different authority levels: Master, Management, Supervisor & basic user as well as multiple "one-time" user codes. 500 scheduled events & 40,000 event audit trail. |
| STANDARD KEY OVERRIDE CYLINDERS | Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders |
| LATCHBOLT | UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors |
| STRIKE | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs |
| HANDING | Non-handed |
| FINISHES | US26D satin chrome |
| POWER | 4 AA alkaline batteries (included) are now rated at 100,000 cycles. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
| DOOR PREP | Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes |
| COMPLIANCES | BHMA Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
