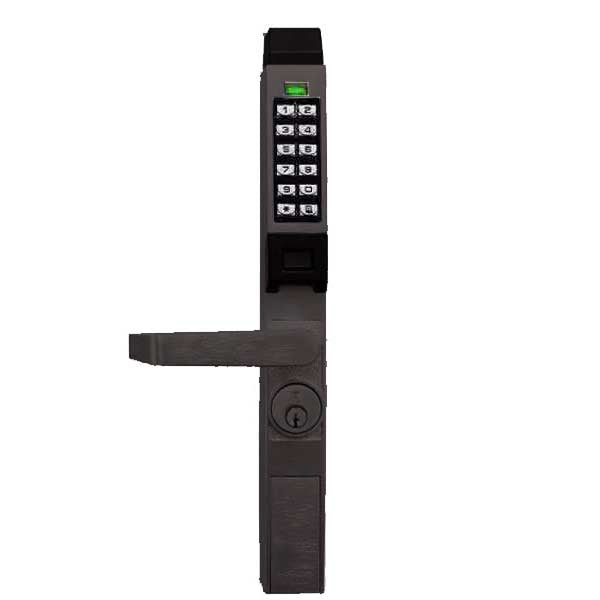

Alarm Lock Trilogy - PDL1300NW - Narrow-Stile Digital PROX Keypad Lever Lock - Networx - 10B - Oil Rubbed Bronze

Alarm Lock Trilogy - PDL1300NW - Narrow-Stile Digital PROX Keypad Lever Lock - Networx - 10B - Oil Rubbed Bronze

Alarm Lock

Regular price $1,098.80 USD
Regular price $1,919.54 USD Sale price $1,098.80 USD
Sale Sold out
Shipping calculated at checkout.

SLK-ALL-PDL1300-NW-10B
Item number: 6791

The Trilogy PDL1300-NW-10B - Narrow-Stile Digital Networx PROX Lever Lock w/ Wireless Access

Trilogy Narrow Stile Keypad Lever Lock w/ Audit Trail supports Adams Rite® latch. products. Get field-proven Trilogy® keyless access lock convenience anywhere there's a Narrow Stile compatible door. Weatherproof, all-metal, and vandal-resistant, they offer automatic lock or free passage schedules to Adams Rite® latch applications, emergency global lockdown in seconds, and have unsurpassed battery life. The DL1300 series is a rugged entry lock of advanced design with several programmable features.

  • Built-in Proximity Reader: Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
  • Features Alarm Locks Networx connectivity so you can communicate with up to 63 different locks via a gateway connection
  • Include a mortise cylinder that has 2 keys included
  • More Information Below

SPECIFICATIONS:

LOCK FUNCTION Entrance Narrow-Stile PROX Keypad Lever Lock w/ Audit Trail
DOOR THICKNESS Only Stile thickness 1 ¾"
BACKSET 3 1/32”,1 1/8’ and 1 1/2”
HANDING Non-handed; fully field-reversible
LEVER TRIM Leverset compatible with Adams Rite 4500, 4700 & 4900 series deadlatch
POWER Long-life, battery-operated for 80,000 to 100,000 Cycles respectively, typical on two 3-Volt 123A Lithium batteries, supplied; low battery alert
CYLINDER 6-pin standard mortise cylinder in SC1 Keyway supplied (Supports 1-1/2" 1-3/8”)
KEYS 2 Keys Included
CAMS Cams supplied works with generic Alarm Lock cylinder
PROGRAMMABLE Yes
USER CODES support 2000 users by PIN, HID Prox ID cards, or fobs. PC programming/reporting and features 40,000 events audit trail by the user and 500 events schedule/real-time clock (e.g. lock/unlock by time)
PROXIMITY FREQUENCY 125 kHz
GATEWAYS & COMPATIBILITY Choice of networking options for any application, control 63 locks per Gateway and 2016 Locks per system. Compatible with AL-IME2, AL-IME2-80211, AL-IME2-POE
SOFTWARE Free Windows-based software for programming, entering users, and receiving time-/date-stamped (by user) 35K event audit trail from the lock.
WEATHERPROOF -31˚ to +151˚F (-35˚ to +66˚C)
CONSTRUCTION Zinc Alloy, Vandal Resistant
FINISH 10B Oil Rubbed Bronze

Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here

Downloads:
Brochure
Specifications
