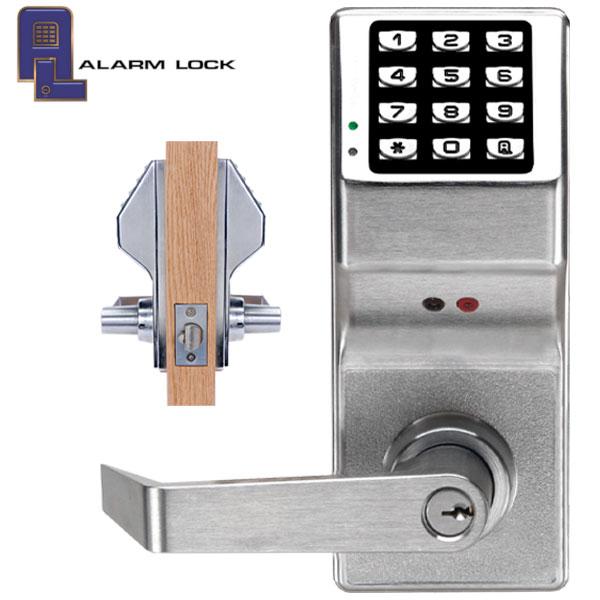

Alarm Lock Trilogy - DL5200 - Double Sided Keypad Lever Set - 26D - Satin Chrome
Alarm Lock Trilogy - DL5200 - Double Sided Keypad Lever Set - 26D - Satin Chrome
Alarm Lock
Couldn't load pickup availability
SLK-ALL-DL5200-26D
Item number: 5033
The DL5200 Double-sided Keypad Lever Lock is ideal for community pool gates, courtyard gates, airport jet bridge doors, communicating doors, interrogation rooms plus psych and Alzheimer's areas. It incorporates all of the important features of the most popular Trilogy DL2700 (T2) into a double-sided keypad lock. Programming user codes on one side of the door work both sides, cutting your time and labor in half.
- Incorporates all of the important features of the DL2700 (T2) into a double-sided lock
- Key override is only operable on the primary side. The key on the secondary side is used only to remove the lever and access the batteries.
| LOCK FUNCTION | Entrance Double Sided Keypad Lever Lock |
| OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
| DOOR THICKNESS | 1 5/8" to 1 7/8." |
| BACKSET | 2 3/4" Standard. |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| USERS | More codes: up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes |
| STANDARD KEY OVERRIDE CYLINDERS | Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders |
| LATCHBOLT | UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors |
| STRIKE | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs |
| LATCH FRONT | 1 1/8” x 2 1/4” wrought brass or stainless steel |
| HANDING | Non-handed |
| FINISHES | US26D satin chrome |
| POWER | 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
| DOOR PREP | Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes |
| COMPLIANCES | Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
