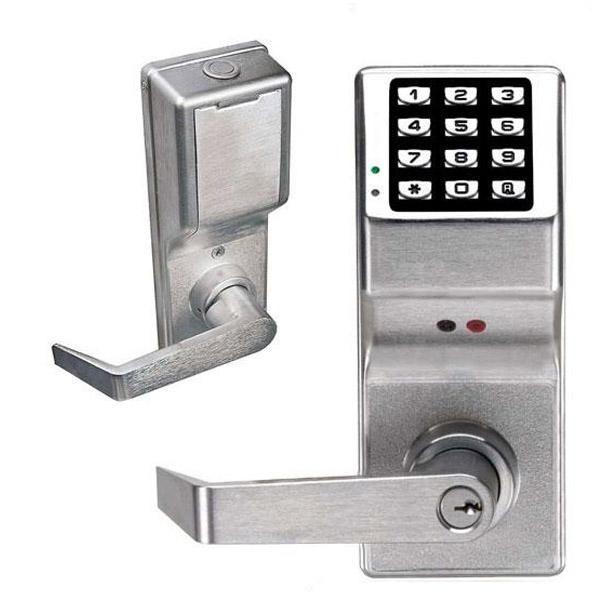

Alarm Lock Trilogy - DL4100 - Digital Lever Set w/ Audit Trail & Privacy Feature - 26D - Satin Chrome
Alarm Lock Trilogy - DL4100 - Digital Lever Set w/ Audit Trail & Privacy Feature - 26D - Satin Chrome
Alarm Lock
Regular price
$659.94 USD
Regular price
$942.35 USD
Sale price
$659.94 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-ALL-DL4100-26D
Item Number: 5025
The Trilogy DL4100 Series is one of Alarm Lock's most popular standalone keypad cylindrical locks with Grade 1 durability. A leader in access and egress solutions for education, healthcare, multi-use commercial, retail, transportation & industry. Field-proven reliability. This model has a Residency as well as a Privacy mode.
- Residency feature allows exiting without having to lock the door
- Privacy Pushbutton allows temporary lockout keypad codes (programmable option) with a push-button on the inside door. Interior LED on the inside housing indicates when the privacy session is active rest assured knowing that you are safe within the room while locking out unauthorized users.
- Occupied and multi-status LED indicator, flashes when privacy session is active
SPECIFICATIONS
| LOCK FUNCTION | Entrance Digital Lever Lock w/ Audit Trail & Privacy Feature |
| OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
| DOOR THICKNESS | 1 5/8" to 1 7/8." |
| BACKSET | 2 3/4" Standard. |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| USERS | Holds up to 2000 PIN Codes with four different authority levels: Master, Management, Supervisor & Basic user as well as multiple "one-time" user codes. 500 scheduled events & 40,000 event audit trail. |
| STANDARD KEY OVERRIDE CYLINDERS | Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders |
| LATCHBOLT | UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors |
| STRIKE | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs |
| LATCH FRONT | 1 1/8” x 2 1/4” wrought brass or stainless steel |
| HANDING | Non-handed |
| FINISHES | US26D satin chrome |
| POWER | 5AA battery-pack operated; approx. 60,000 cycles supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| DOOR PREP | Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes |
| COMPLIANCES | Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
