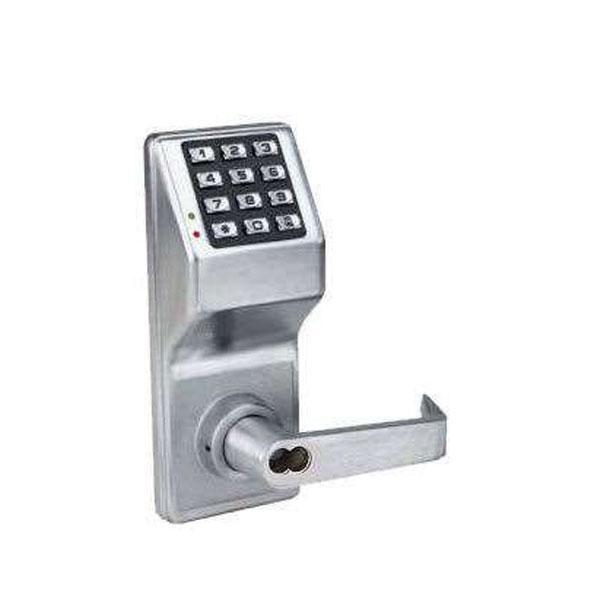

Alarm Lock Trilogy - DL2700IC - Keypad Lever Set - LFIC Prepped for Schlage - 26D - Satin Chrome - Grade 1
Alarm Lock Trilogy - DL2700IC - Keypad Lever Set - LFIC Prepped for Schlage - 26D - Satin Chrome - Grade 1
Alarm Lock
Regular price
$866.41 USD
Regular price
$1,036.30 USD
Sale price
$866.41 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
SLK-ALL-DL2700IC-S-26D
The Trilogy DL2700 Series is one of Alarm Lock's most popular standalone pushbutton cylindrical lock with Grade 1 durability. a leader in access and egress solutions for education, healthcare, multi-use commercial, retail, transportation & industry. Field-proven reliability.
- Electronic battery-operated standalone digital cylindrical keyless door lock.
- More codes: up to 100 3-5 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
- (LFIC) core compatible (not included) prepped for Schlage
SPECIFICATIONS
| LOCK FUNCTION | Entrance |
| OPERATION | The clutch mechanism permits turning the lever without retracting the latch and reduces stress on lock bodies and spindle. Outside lever free turning in the locked position. Entering access code, key bypass, or remote bypass will allow the lever to retract the latch. Inside lever always instant egress |
| DOOR THICKNESS | 1 5/8" to 1 7/8." |
| BACKSET | 2 3/4" Standard. |
| KEYPAD | All metal, 12 buttons programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability, and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced |
| INTERCHANGEABLE CORE MODELS | Prepped for Schlage IC Cores (LFIC) Alarm Lock Tailpiece is supplied; IC Core is not included |
| LATCHBOLT | UL Listed, fire-rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors |
| STRIKE | 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs |
| LATCH FRONT | 1 1/8” x 2 1/4” wrought brass or stainless steel |
| HANDING | Non-handed |
| FINISHES | US26D satin chrome |
| POWER | 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor |
| DOOR PREP | Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes |
| COMPLIANCES | Grade 1, heavy-duty cylindrical lockset, UL listed and FCC certified. ADA compliant lever sets |
Downloads:
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
