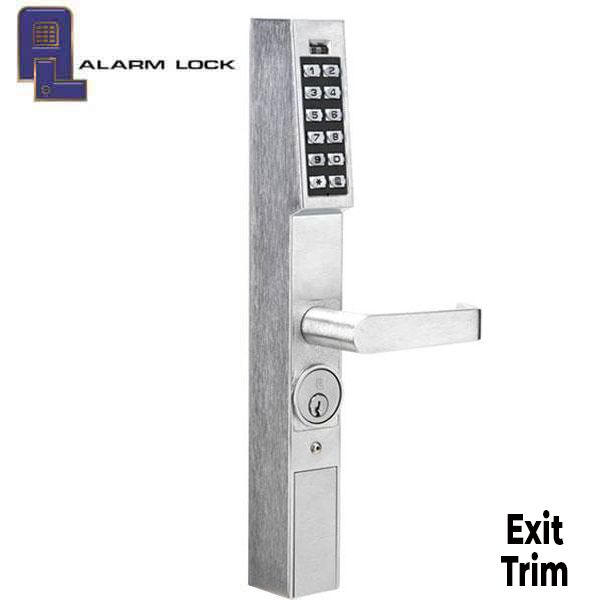

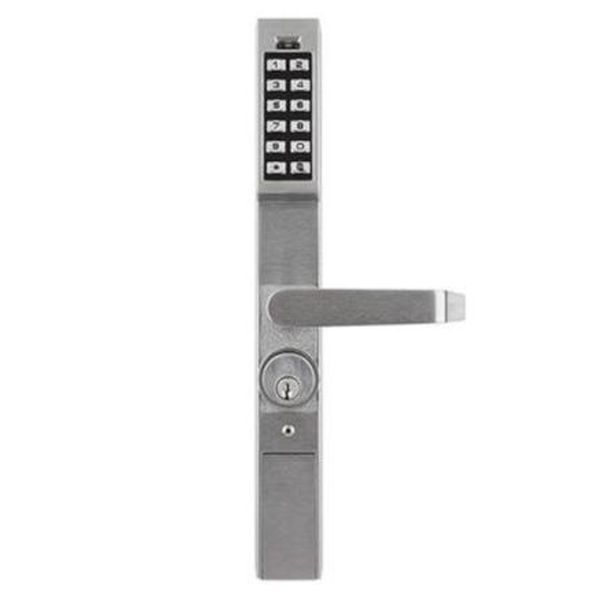

Alarm Lock Trilogy - DL1200ET - Narrow Stile Keypad Exit Lever Lock - 26D - Satin Chrome - Grade 1
Alarm Lock Trilogy - DL1200ET - Narrow Stile Keypad Exit Lever Lock - 26D - Satin Chrome - Grade 1
Alarm Lock
Regular price
$629.55 USD
Regular price
$596.70 USD
Sale price
$629.55 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Trilogy Narrow Stile Keypad Exit Lever Lock models support Arrow, DCI, Von Duprin and Dorma panic exit bars. Get field-proven Trilogy® keyless access lock convenience anywhere there's a Narrow Stile compatible door. Weatherproof, all-metal, and vandal-resistant, they offer automatic lock or free passage schedules to Adams Rite® latch applications, emergency global lockdown in seconds, and have unsurpassed battery life. The DL1200 series is a rugged entry lock of advanced design with several programmable features.
Important Note: Tailpiece is sold separately and is required for most installations (compatibility table below)
| --- | Tailpiece | Compatible Devices |
|---|---|---|
| ALL-TP-1691 | Arrow S1200/1250, Von Duprin 22 & Dorma 5300, DCI 1200/1300 Panic Devices | |
| ALL-TP-1693 | Corbin ED8200 Panic Device | |
| ALL-TP-1694 | Von Duprin 33 LH (RHR) Devices only |
| Specifications | |
|---|---|
| LOCK FUNCTION | Narrow Stile Keypad Exit Lever Lock |
| DOOR THICKNESS | Only Stile thickness 1 ¾" |
| BACKSET | 31/32”,1 1/8’ and 1-1/2” |
| HANDING | Non-handed; fully field-reversible |
| LEVER TRIM | Aluminum door retrofit Arrow, DCI, Von Duprin and Dorma panic exit bars |
| POWER | Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert |
| CYLINDER | 1-1/4” supplied (Supports 1-1/8, 1-1/4, and 1-3/8”) |
| PROGRAMMABLE | Yes |
| USER CODES | keypad supports 100 users, fingertip/keypad programmable |
| WEATHERPROOF | -31˚ to +151˚F (-35˚ to +66˚C) |
| FINISH | US26D Satin Chrome |
